ACCESSORIES FOR INDUSTRY

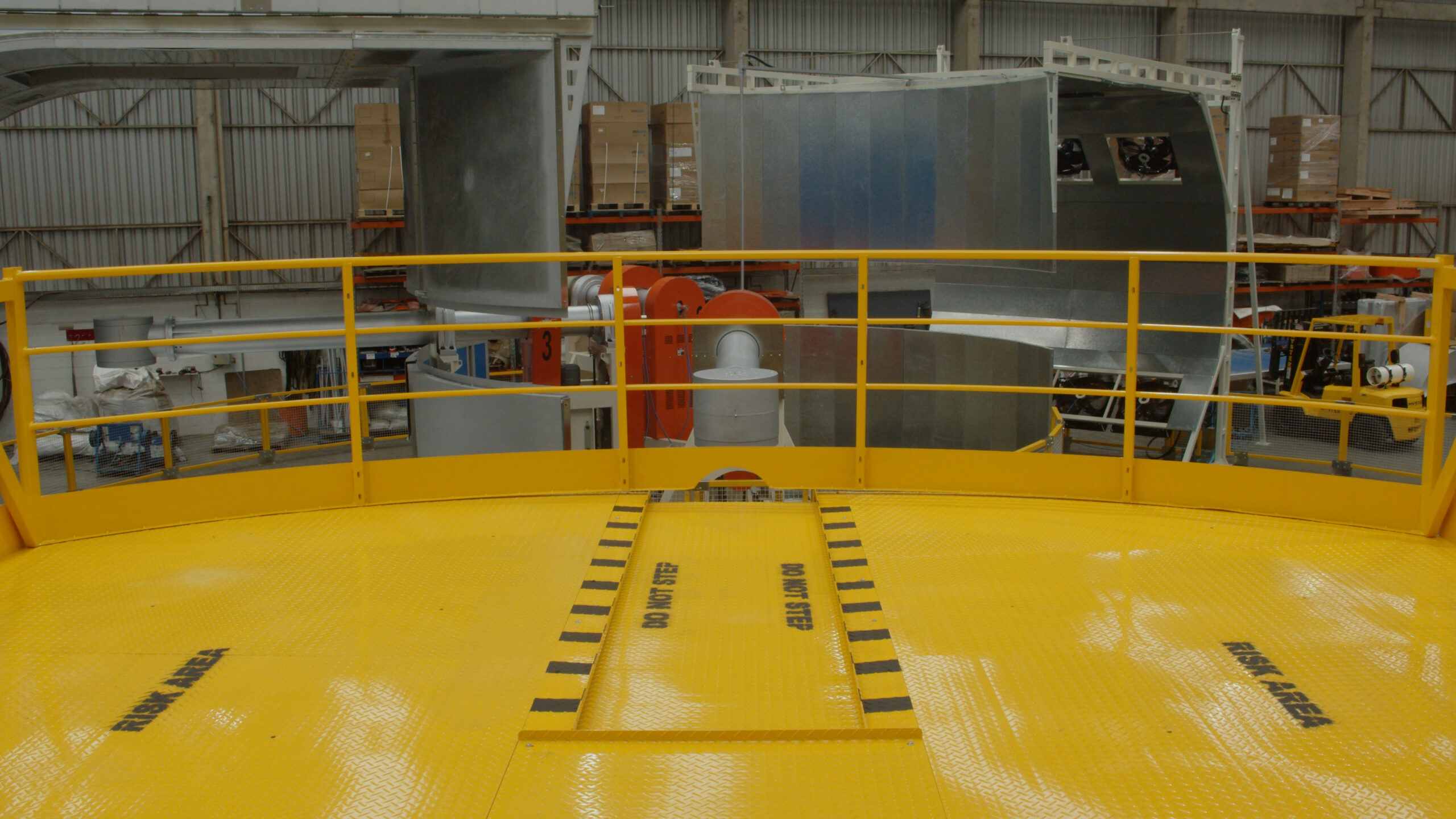

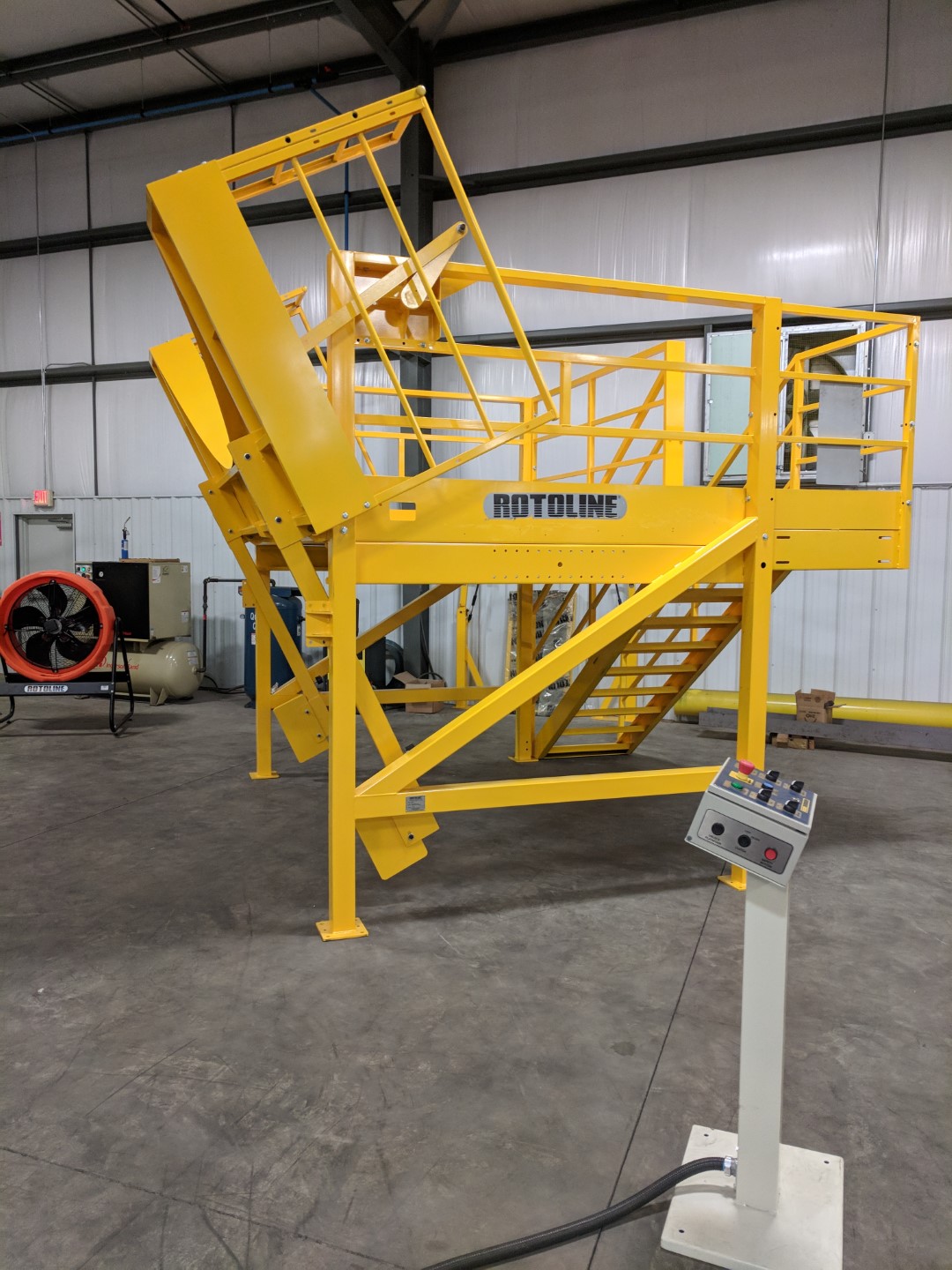

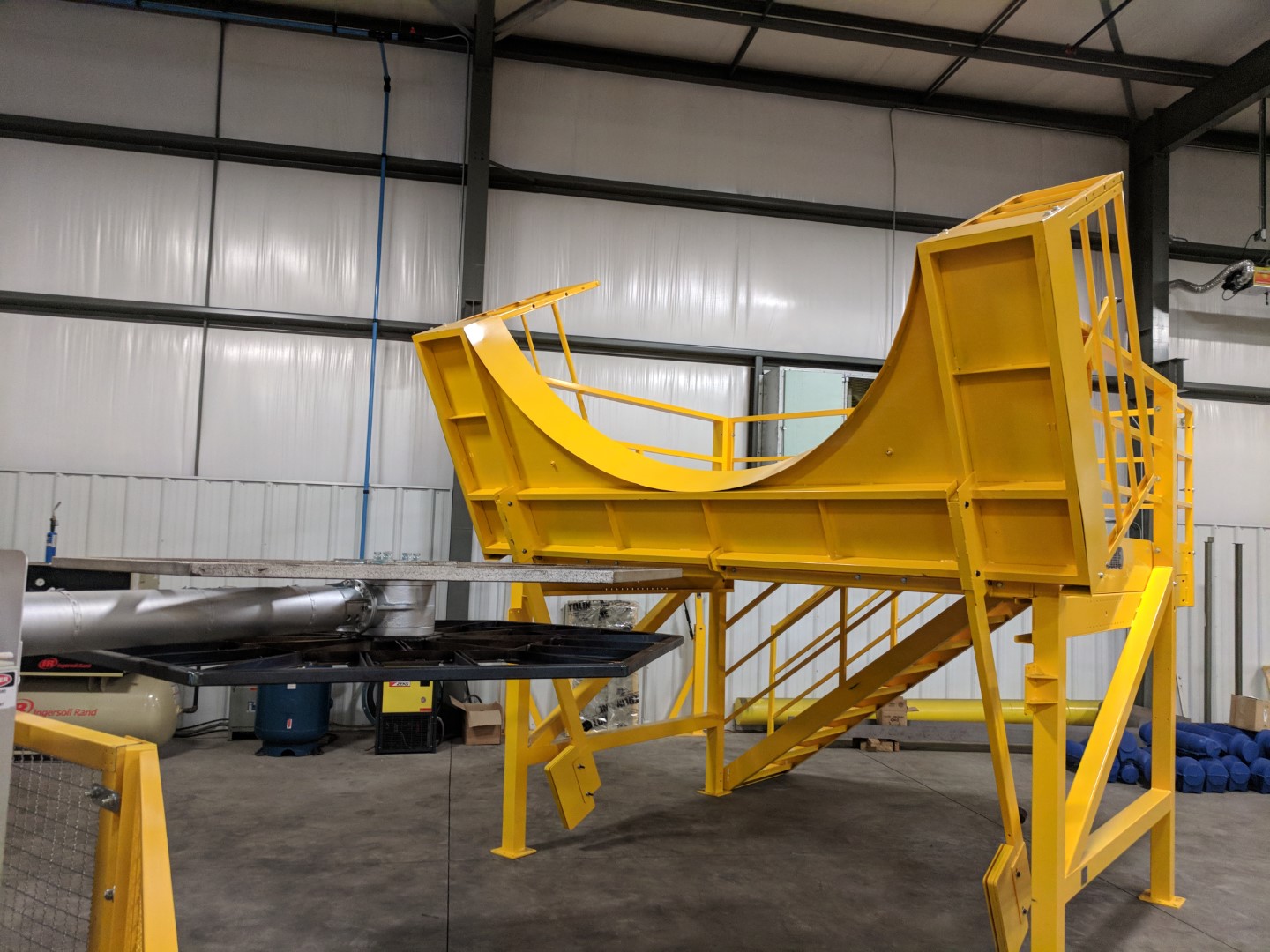

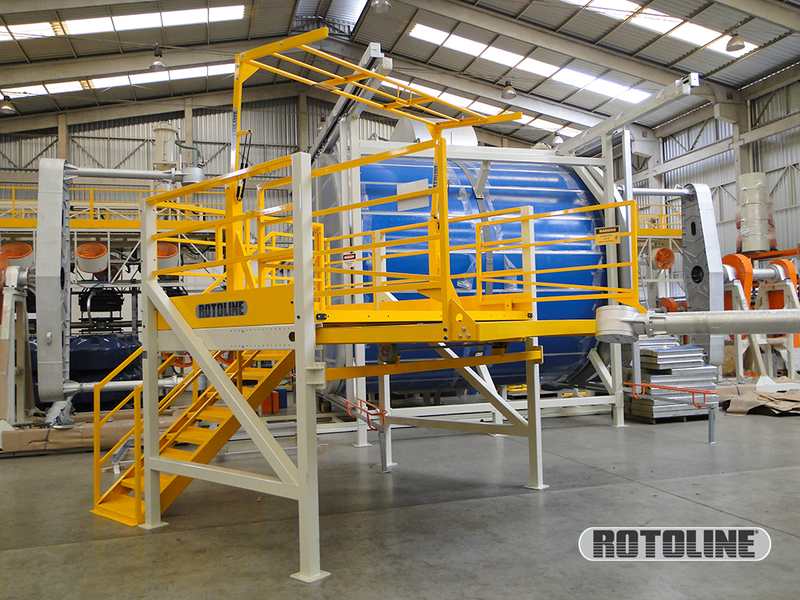

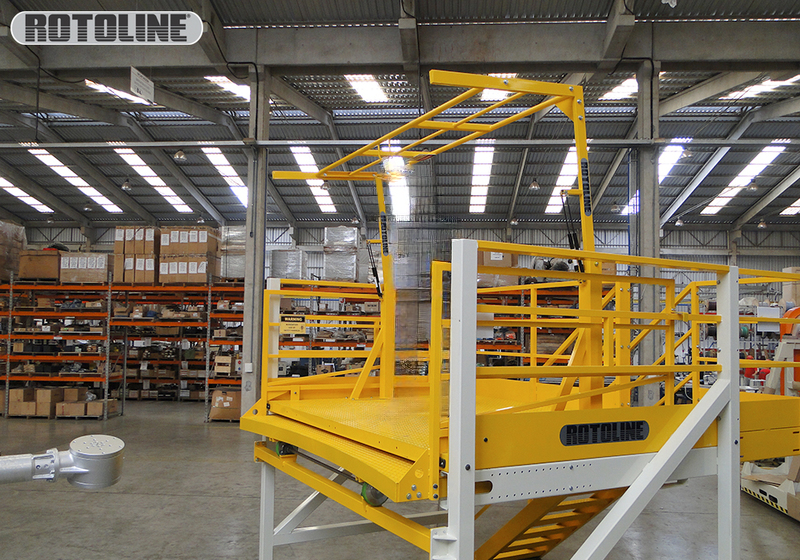

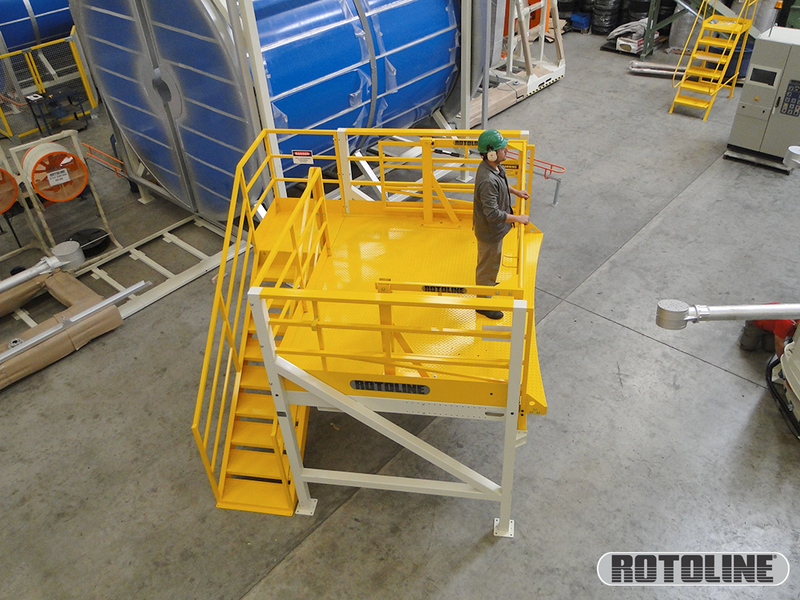

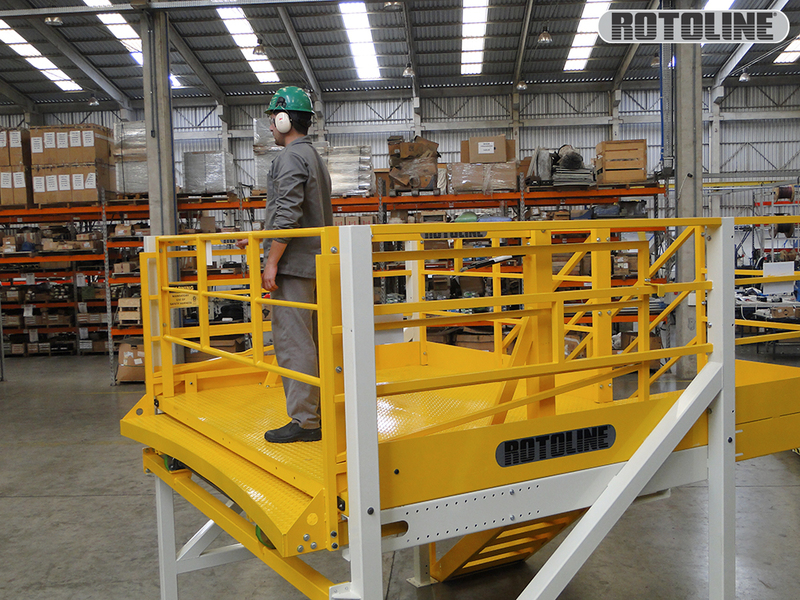

Work Platform

Safety access of workers during molds loading and unloading. Manual or automatic retractable versions.

CHECK THE MODEL
OF PLATFORM

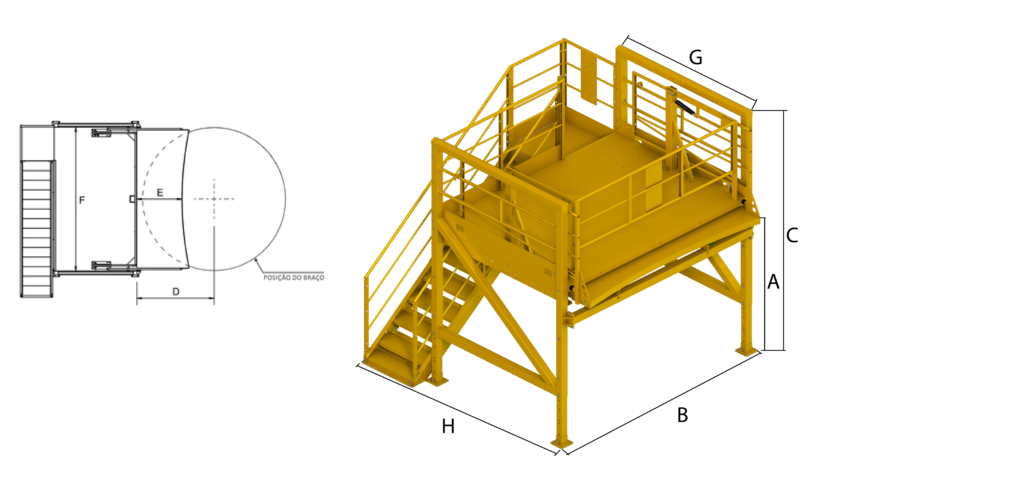

Machine Model	A	B	C	D	E	F	G	H
DATA VALID FOR MODELS MANUFACTURED FROM 2021. FOR INFORMATION ON EARLIER MODELS, CONTACT OUR TECHNICAL SUPPORT.
DC2.50	1790mm 70In	3480mm 137In	3025mm 119In	1570mm 62In	1170mm 46In	3000mm 118In	2200mm 87In	3150mm 124In
DC3.00	2200mm 87In	3980mm 157In	3420mm 135In	1810mm 71In	1170mm 46In
DC3.50	2460mm 97In	3925mm 155In	3690mm 145In	2060mm 81In	780mm 31In
CR2.60	1680mm 66In	3310mm 130In	2910mm 115In	1540mm 61In	1160mm 46In
CR3.10	2030mm 80In	3540mm 139In	3260mm 128In	1850mm 73In	1000mm 39In
CR3.60	2300mm 91In	3885mm 153In	3530mm 139In	2000mm 79In	780mm 31In
DC4.00	2720mm 107In	4680mm 184In	3960mm 156In	2300mm 91In	1150mm 45In	3820mm 150In
DC4.50	2920mm 115In	4930mm 194In	4160mm 164In	2550mm 100In	870mm 34In
CR4.10	2500mm 98In	4130mm 163In	3735mm 147In	2245mm 88In	1150mm 45In

WATCH
THE VIDEO

OVERVIEW

Easy access to the molds and/or mold changes.
Minimizes risk of accidents during operation.
Easy installation.
Ladder assembly optional for either side.
Installation in any Rotoline Machine model and it can be adapted to other manufacturers machines.
Front guardrails with manual handling and safety lock.
Ensures better working conditions for the operator (ergonomics).
Avoids the need for operator to stay under the molds.

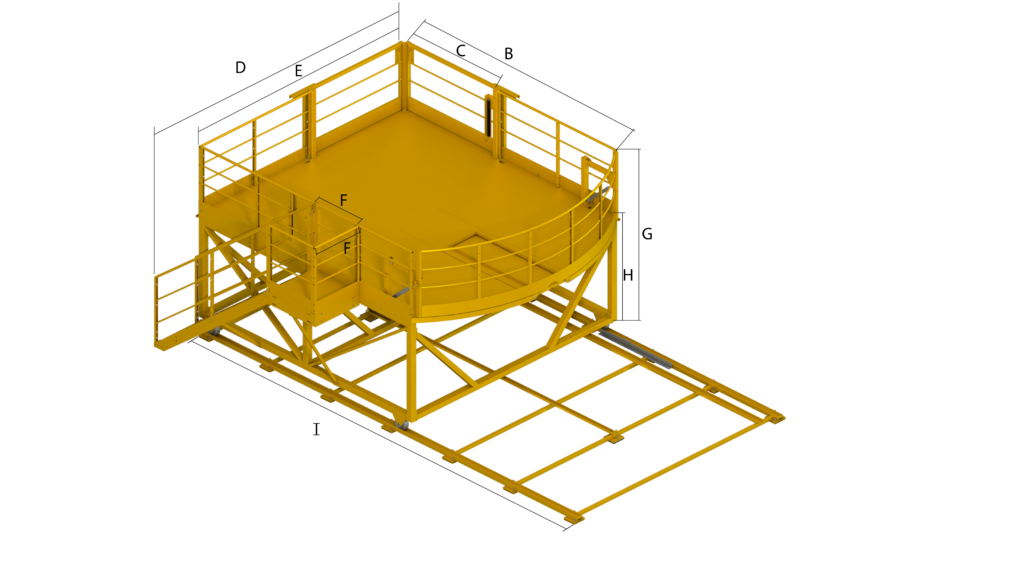

Machine Model	A	B	C	D	E	F	G	H	I
DATA VALID FOR MODELS MANUFACTURED FROM 2021. FOR INFORMATION ON EARLIER MODELS, CONTACT OUR TECHNICAL SUPPORT.
CR2.60	6500mm 256In	5000mm 197In	1800mm 71In	4400mm 173In	3500mm 138In	1500mm 59In	2770mm 109In	1670mm 66In	10500mm 413In
CR3.10	6840mm 269In	5000mm 197In	1800mm 71In	4400mm 173In	3500mm 138In	1500mm 59In	3090mm 122In	1990mm 78In	11500mm 453In
CR3.60	7870mm 310In	5950mm 234In	1800mm 71In	5400mm 213In	4500mm 177In	1500mm 59In	3410mm 134In	2310mm 91In	13100mm 516In
CR4.10	8160mm 321In	5950mm 234In	1800mm 71In	5400mm 213In	4500mm 177In	1500mm 59In	3640mm 143In	2540mm 100In	13905mm 547In
CR4.60	9510mm 374In	7080mm 279In	1800mm 71In	6520mm 257In	5620mm 221In	1500mm 59In	3950mm 156In	2850mm 112In	0mm 0In
CR5.20	9810mm 386In	7080mm 279In	1800mm 71In	6520mm 257In	5620mm 221In	1500mm 59In	4260mm 168In	3160mm 124In	0mm 0In

OVERVIEW

Easy access to the molds and/or mold changes.
Minimizes risk of accidents during operation.
Easy installation.
Ladder assembly optional for either side.
Installation in any Rotoline Machine model and it can be adapted to other manufacturers machines.
Front guardrails with manual handling and safety lock.
Ensures better working conditions for the operator (ergonomics).
Avoids the need for operator to stay under the molds.

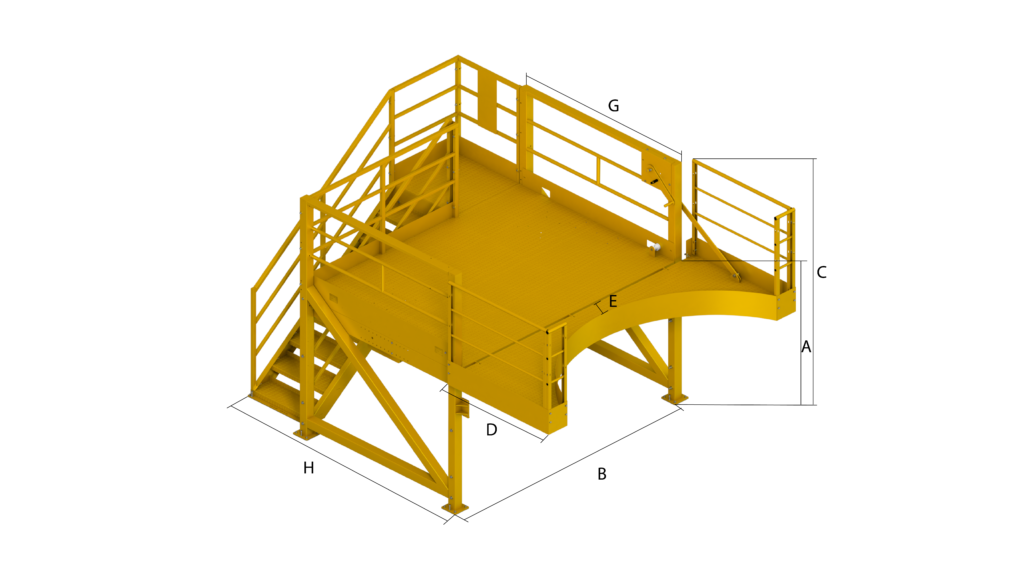

Machine Model	A	B	C	D	E	F	G	H
DATA VALID FOR MODELS MANUFACTURED FROM 2021. FOR INFORMATION ON EARLIER MODELS, CONTACT OUR TECHNICAL SUPPORT.
CR2.60	1350mm 53In	3310mm 130In	2450mm 96In	1820mm 72In	440mm 17In	3000mm 118In	2200mm 87In	3150mm 124In
CR3.10	1625mm 64In	3310mm 130In	2725mm 107In	2080mm 82In
CR3.60	1965mm 77In	3540mm 139In	3070mm 121In	2290mm 90In

OVERVIEW

Easy access to the molds and/or mold changes.
Minimizes risk of accidents during operation.
Easy installation.
Ladder assembly optional for either side.
Installation in any Rotoline Machine model and it can be adapted to other manufacturers machines.
Front guardrails with manual handling and safety lock.
Ensures better working conditions for the operator (ergonomics).
Avoids the need for operator to stay under the molds.
