ROTATIONAL MOLDING MACHINE

TNC

Cutting-edge technology, total
automation and high productivity

IDEAL FOR THE PRODUCTION OF MULTI-LAYER PARTS

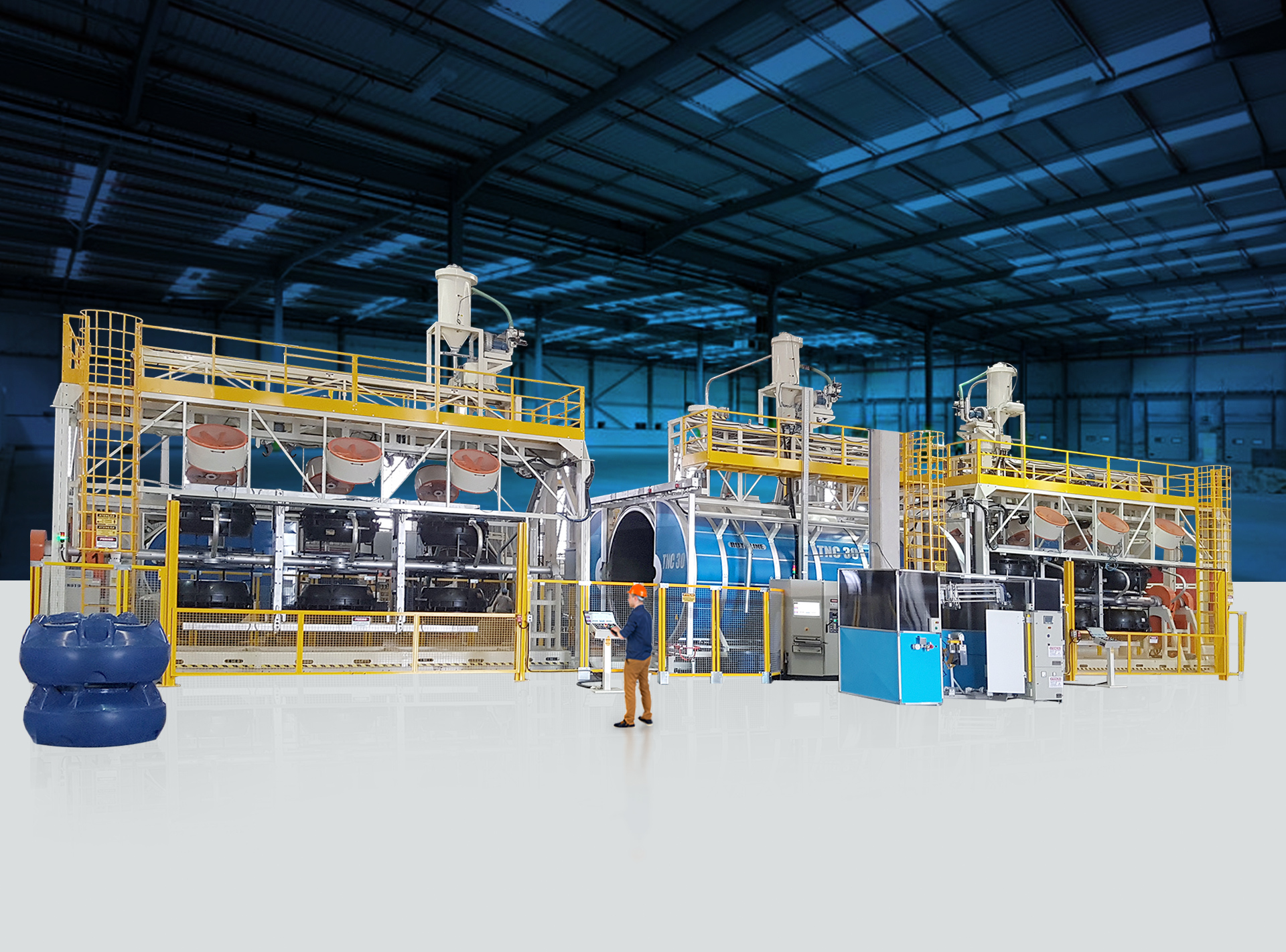

The TNC rotational molding machine offers state-of-the-art technology, full automation, high productivity, process control and standardization, cost savings and safety. It is ideal for the production of multilayer tanks, including color variations among layers.

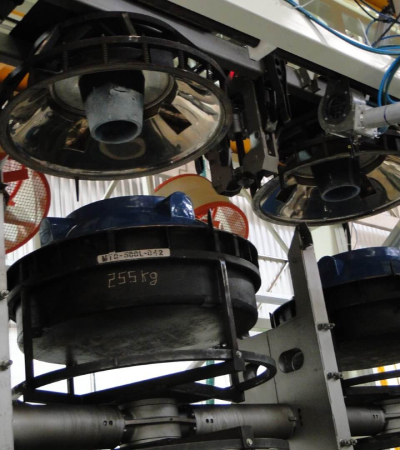

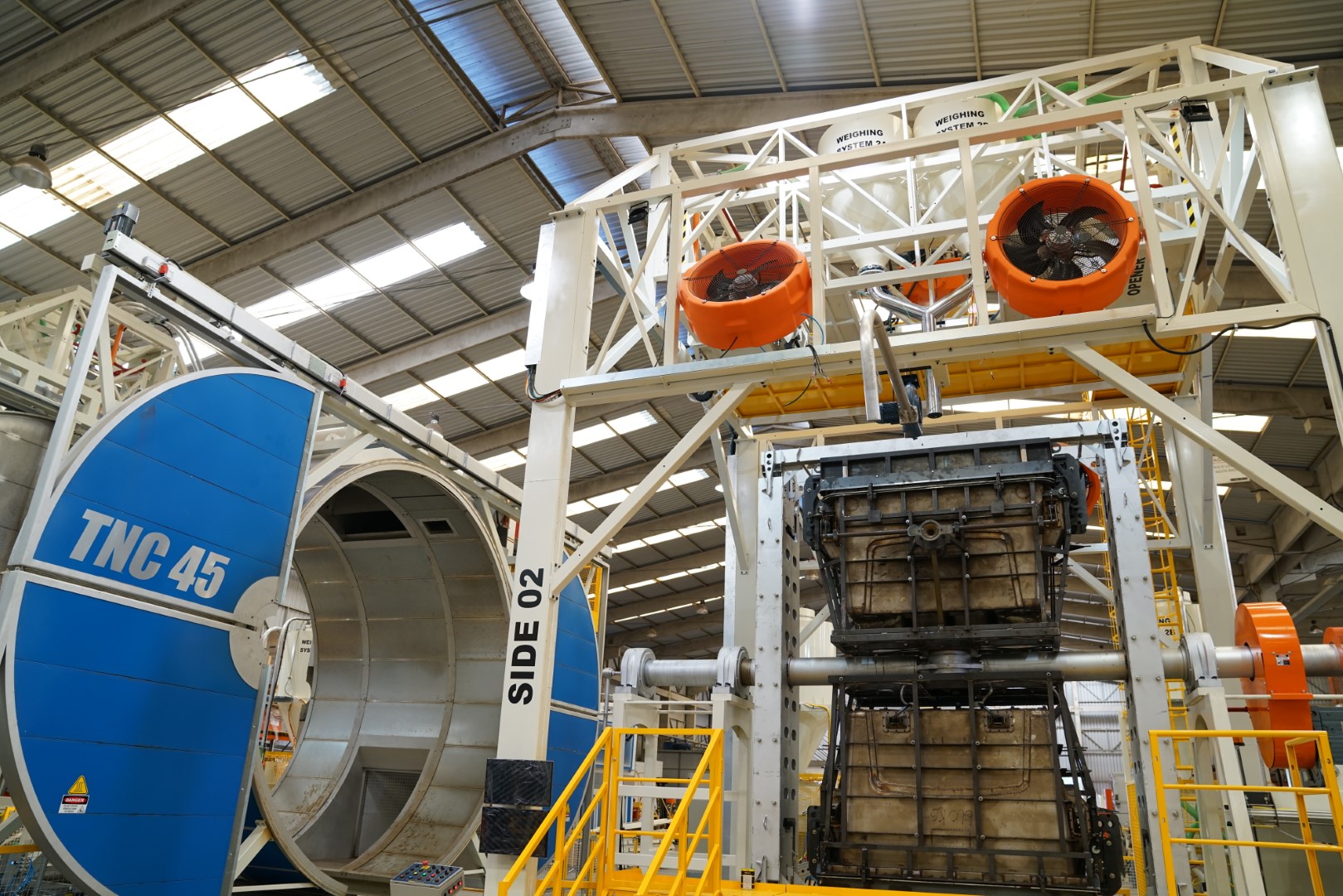

TNC works with an automatic weighing system, which favors the supply accuracy and the reduction of raw material waste. It also performs the feeding, opening and closing of the molds automatically, promoting operator safety and agility in the process.

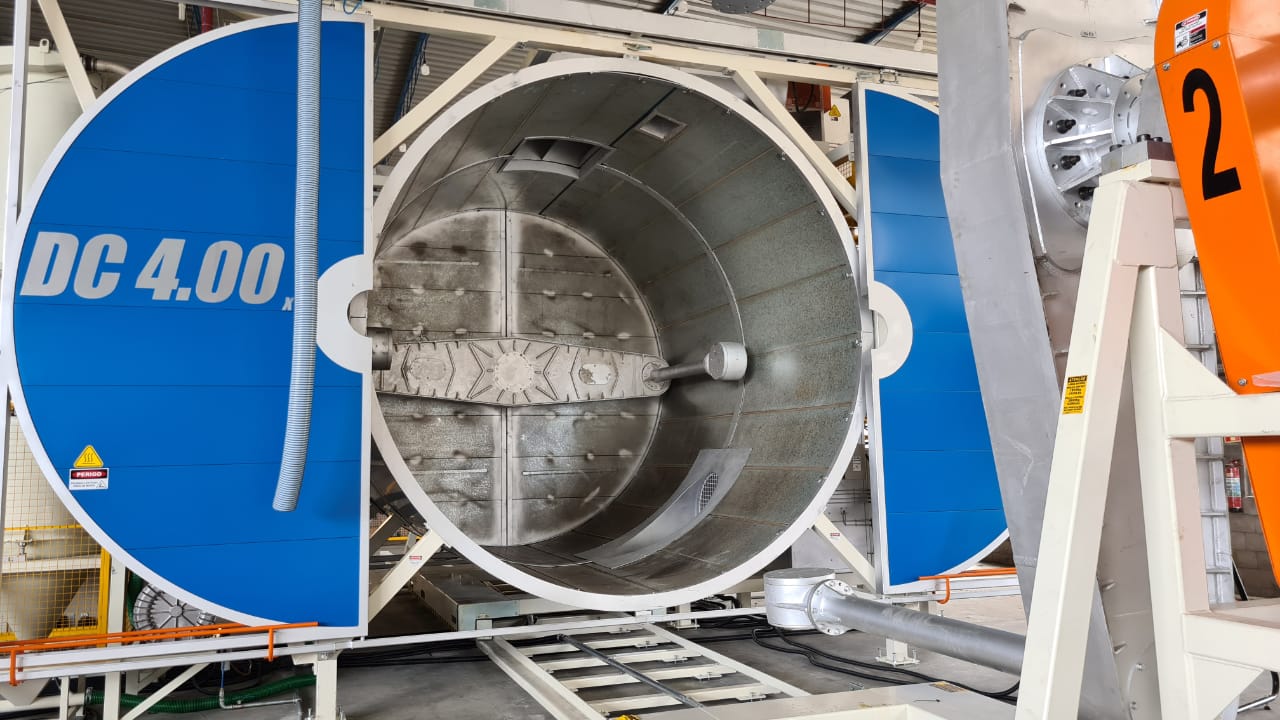

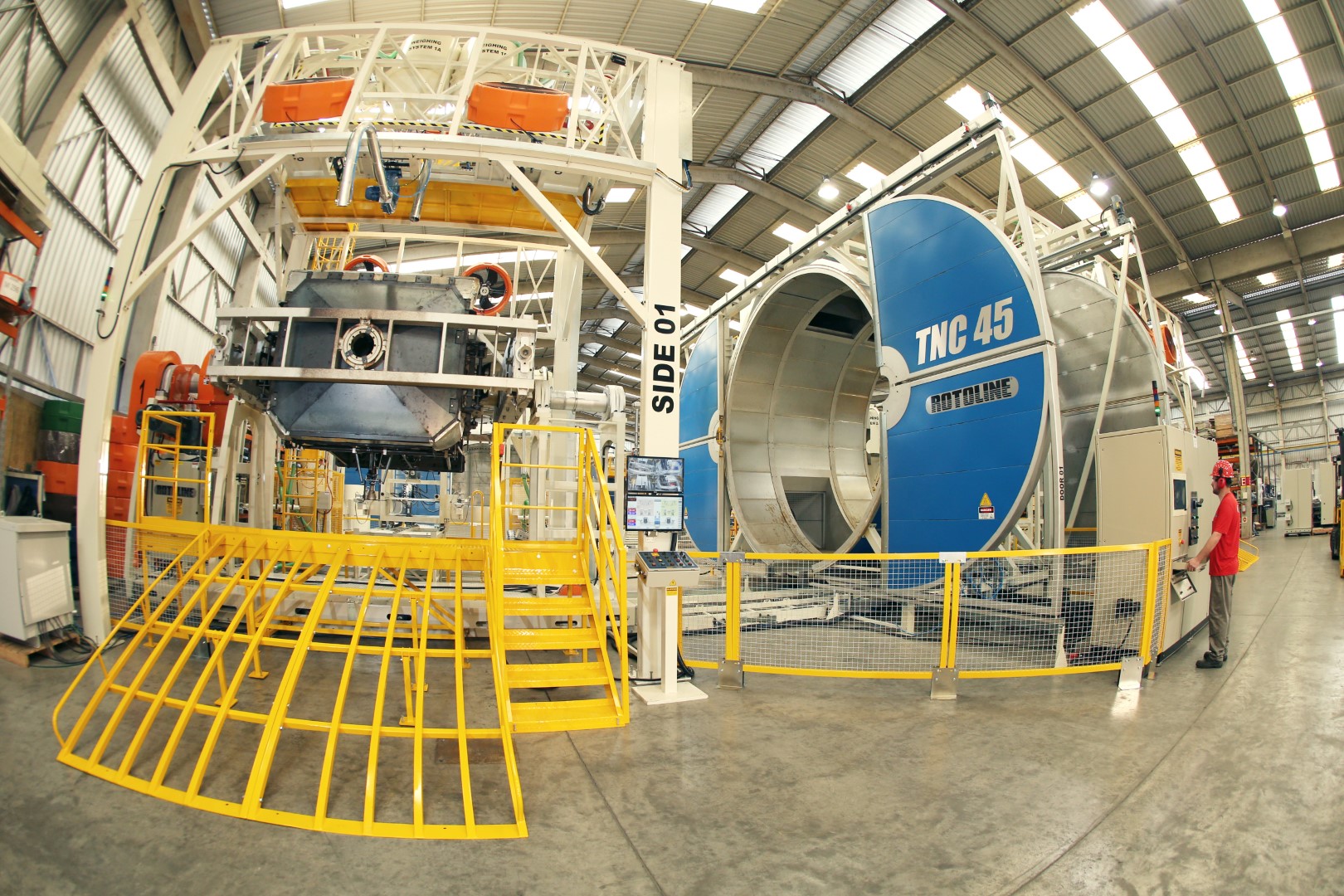

The automatic feeding system inside the oven, in turn, allows the filling of the second layer automatically, without the need for the molds to leave the loading station.

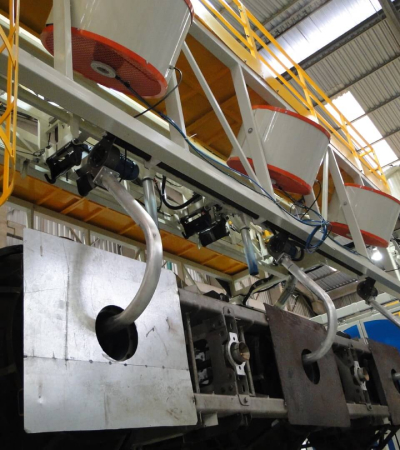

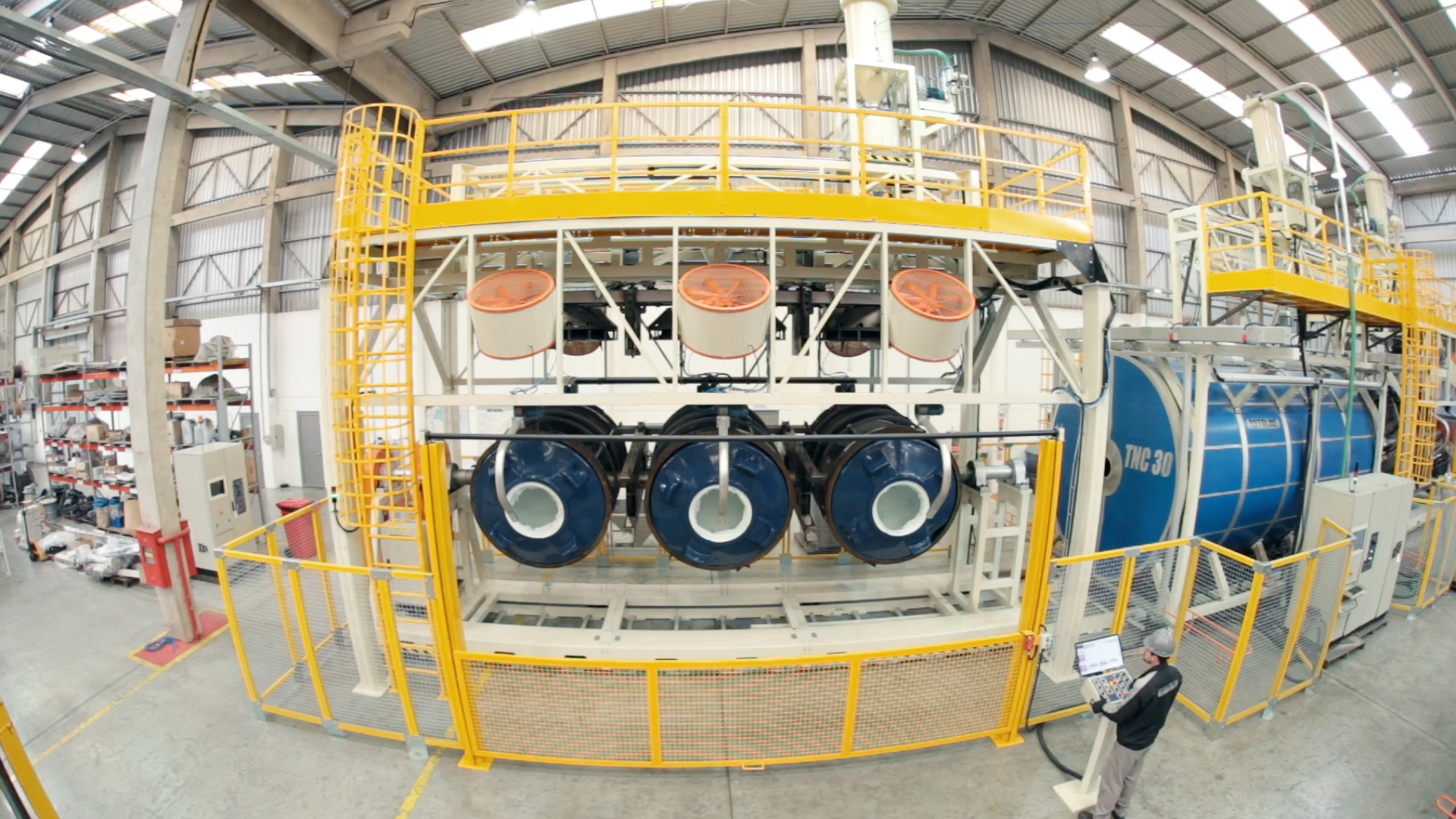

In addition, the molds' internal cooling system reduces the time of this stage of the production cycle by up to 40%.

CHECK
DETAILS

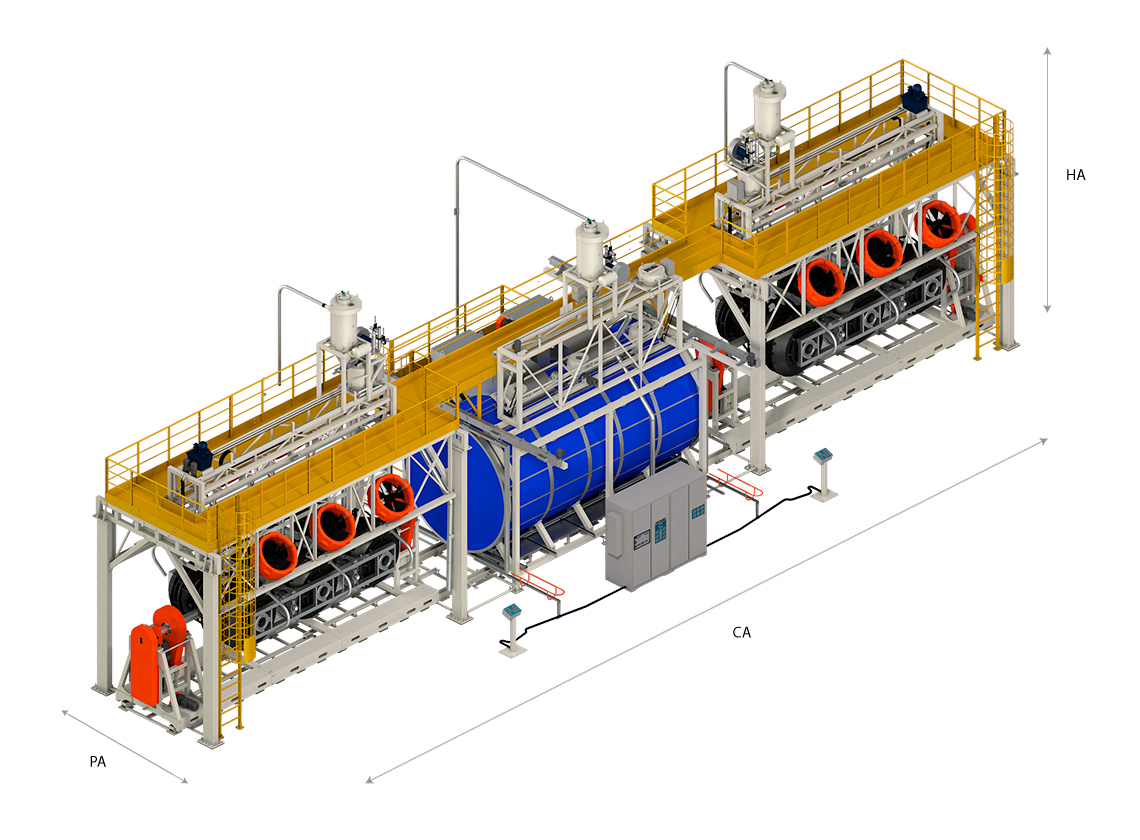

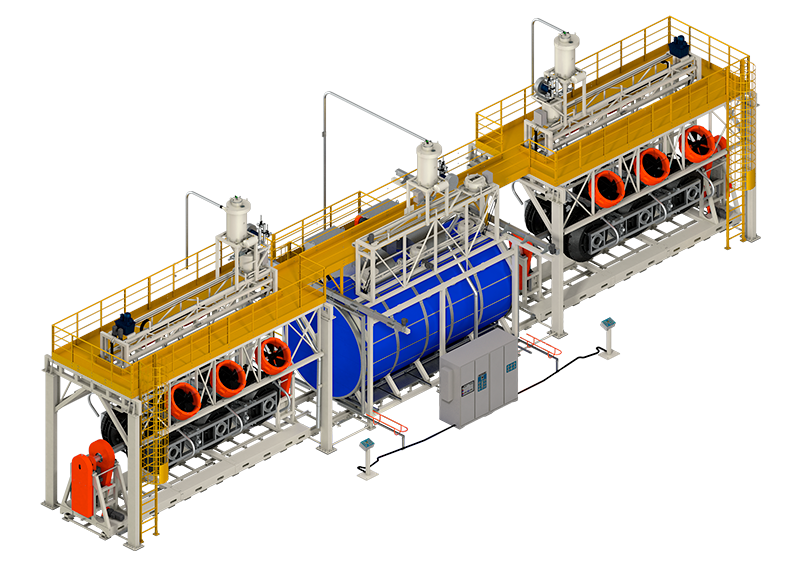

DIMENSIONS
OF THE MACHINE
TNC30

HA
8700 mm
342,5 in

CA
27500 mm
1080,7 in

PA
7200 mm
283,5 in

Ø OVEN
3000 mm
118,1 in

* Measurements are approximate and may be adjusted by the manufacturer.

DIMENSIONS
OF THE MACHINE
TNC45

HA
9300 mm
366,1 in

CA
24000 mm
944,9 in

PA
11000 mm
433,1 in

Ø OVEN
4600 mm
181,1 in

* Measurements are approximate and may be adjusted by the manufacturer.

WATCH
THE VIDEO

ROBUST
MECHANICS

The equipment is designed with a high capacity air recirculation system (equipped with start and speed control by variable frequency drive) and heating system with high efficiency for every cycle. The carts can be equipped with “Central” arm (STRAIGHT) or optional Offset arms ("C" or "L"). Gearmotors and variable frequency drives allows axis speed adjustment in any rotation direction.

INTEGRATED
WIRING

It is equipped with a Main Control Panel, used to program machine and production parameters, and there is also a motor control panel on each carriage. Two control podiums help this panel, providing the operator with three interface points for machine operation. All the panel connections with the field devices are made using quick connector plugs (plug and play), reducing installation time. It also has a complete electrical project, easy to interpret, enabling quick checks and agility in maintenance.

SMART
CONTROL

The CLP is loaded with a management software, which gathers information from multiple sensors installed in various points of the machine. The system records information about faults, diagnoses, production, recipes, among others, making it possible to better control and manage production. In addition to controlling itself, the system makes it possible to monitor the process and obtain status and production reports. The CLP is still linked to the ethernet network with all the Frequency Inverters, enabling a quick verification and adjustment of its parameters, even remotely, as well as providing the operator with much more information about the process.

Rotoline, with the aim of constant technical improvement, reserves the right to make any changes to its products without prior notice.
