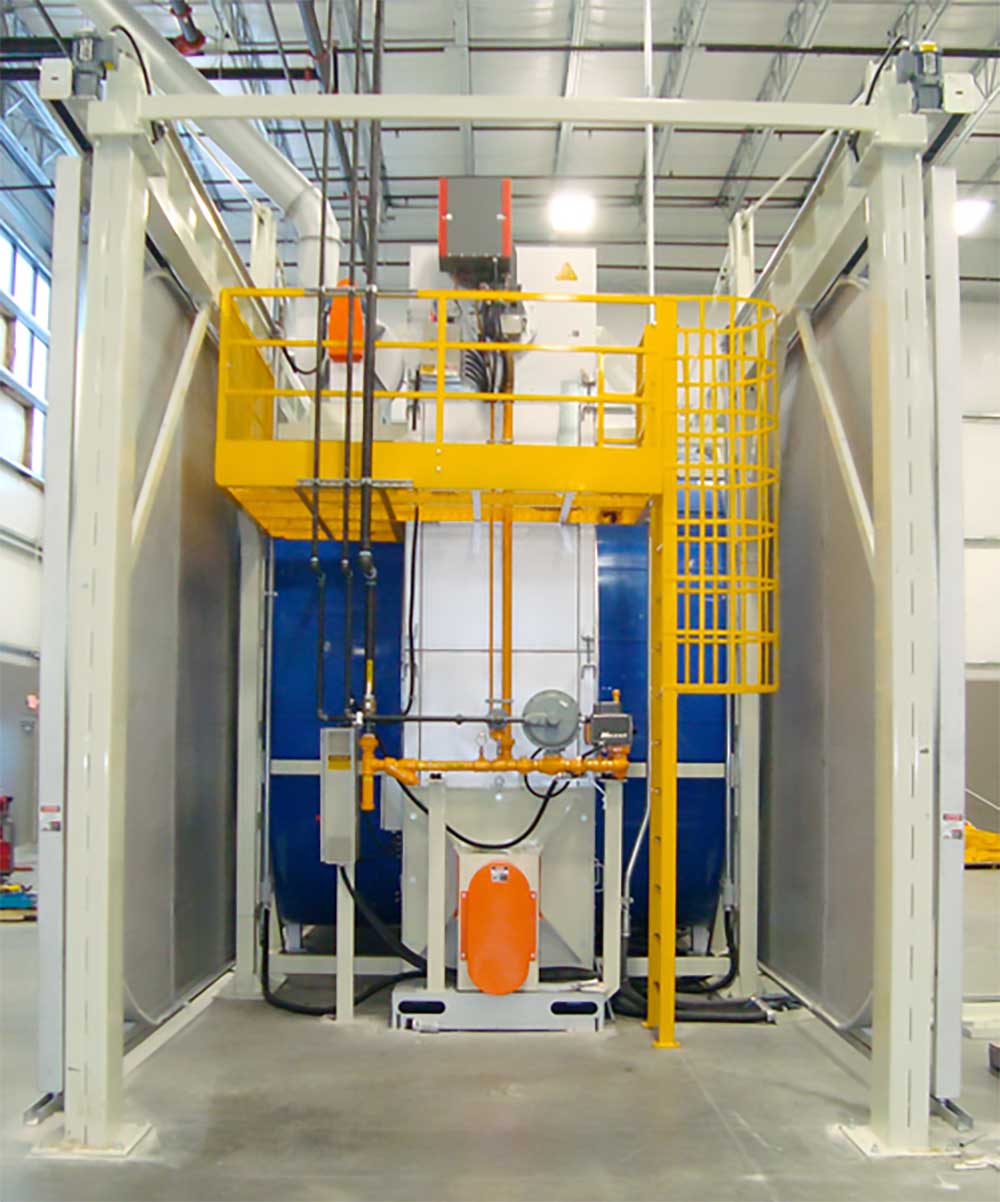

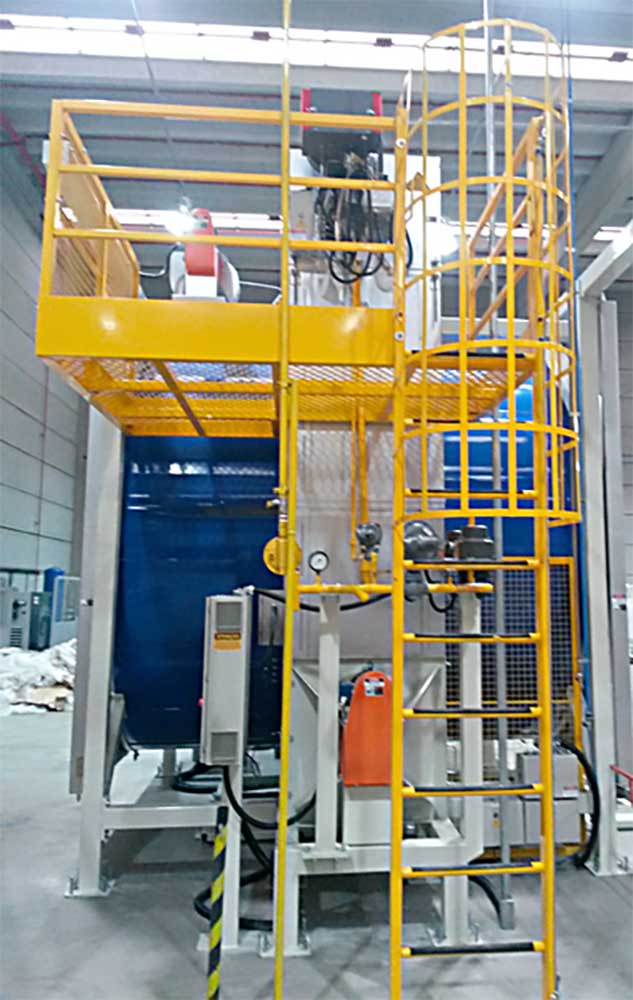

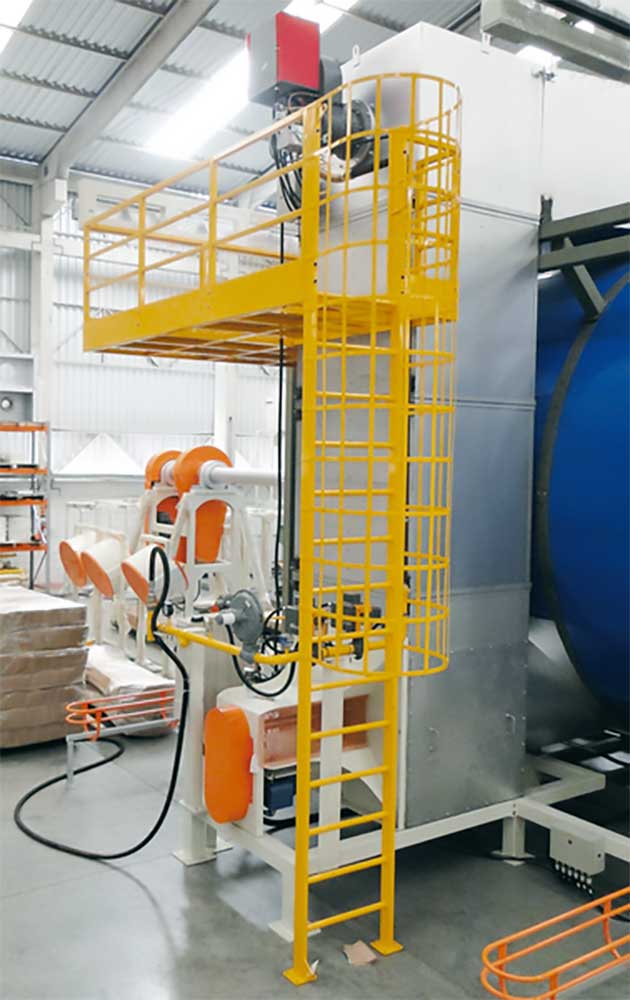

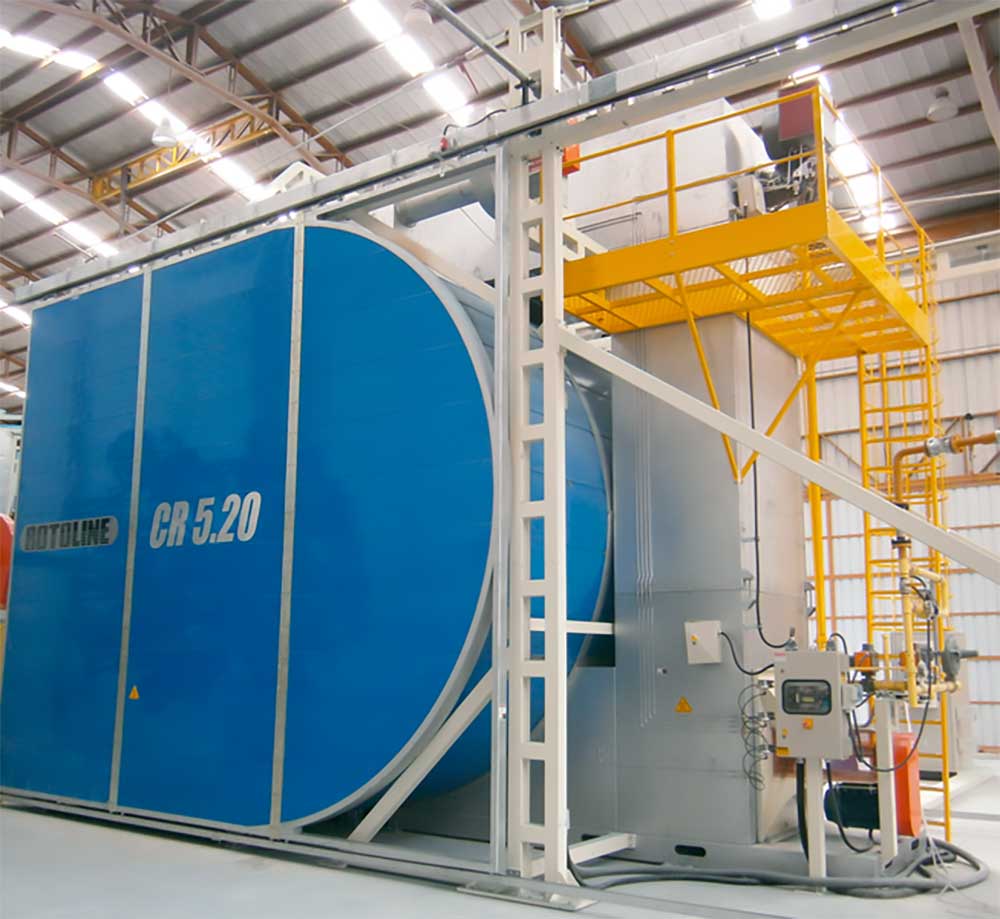

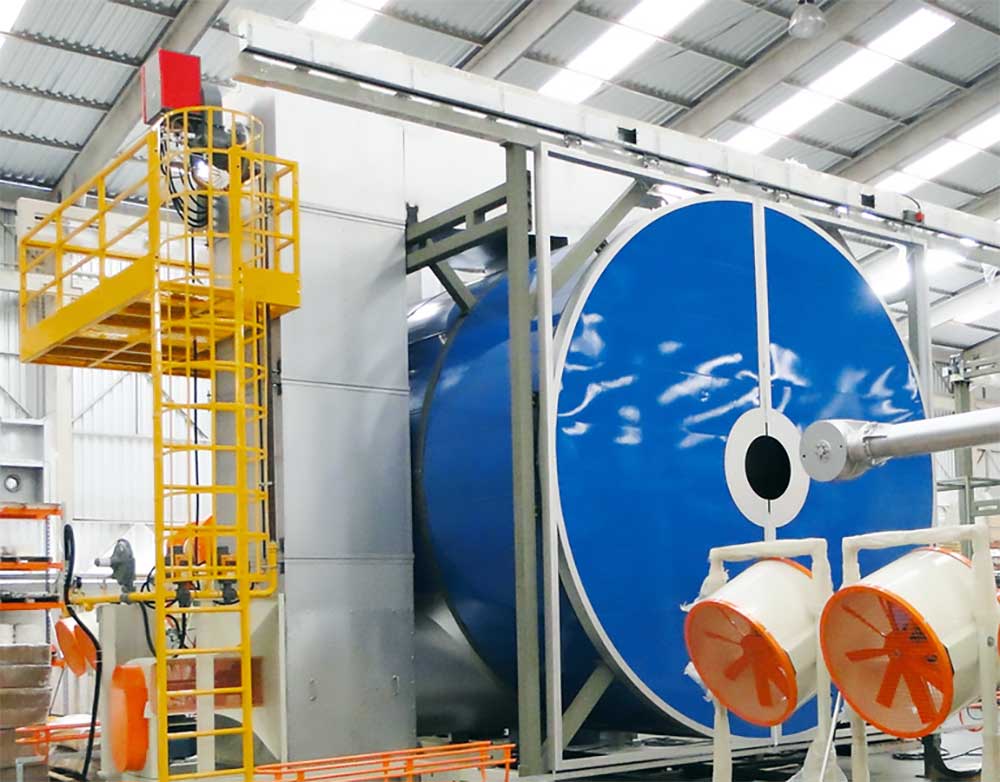

The burner platform is manufactured with steel tubes and sheets, treated with corrosion resistant paint and meets different safety standards. Allows secure access to burner, exhaust fan and machine upper structure, facilitating checks and maintenance.

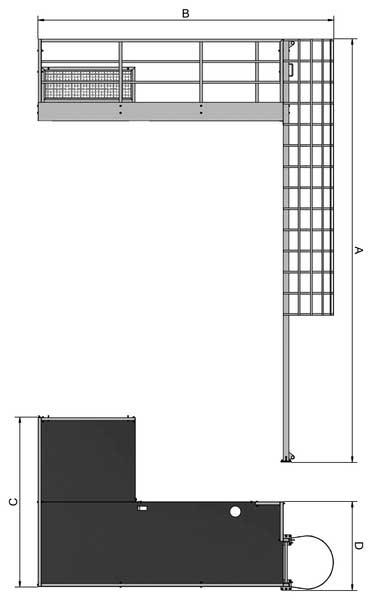

Machine Model | A | B | C | D | |||||
|---|---|---|---|---|---|---|---|---|---|
DATA VALID FOR MODELS MANUFACTURED FROM 2021. FOR INFORMATION ON EARLIER MODELS, CONTACT OUR TECHNICAL SUPPORT. | |||||||||
DC2.50
| 3250mm 128In | 2030mm 80In | 2725mm 107In | 1406mm 55In | |||||
DC3.00
| 3910mm 154In | 2920mm 115In | 1845mm 73In | 1240mm 49In | |||||
DC3.50
| 4445mm 175In | 3390mm 133In | 2145mm 84In | ||||||
DC4.00
| 4930mm 194In | 3710mm 146In | |||||||
DC4.50
| 5310mm 209In | 3960mm 156In | 2445mm 96In | ||||||
DC5.00
| 5290mm 208In | 2950mm 116In | 3105mm 122In | 1900mm 75In | |||||
CR2.60
| 3450mm 136In | 1900mm 75In | 2725mm 107In | 2125mm 84In | |||||
CR3.10
| 3800mm 150In | 2420mm 95In | |||||||
CR3.60 | 4310mm 170In | 3270mm 129In | 2145mm 84In | 1240mm 49In | |||||
CR4.10
| 4810mm 189In | 3755mm 148In | 2445mm 96In | ||||||
CR4.60
| 5310mm 209In | 3960mm 156In | |||||||
CR5.20
| 5860mm 231In | 4176mm 164In | |||||||
CR5.20ES | 6000mm 236In | 4200mm 165In | 2465mm 97In | 1265mm 50In | |||||
