Fans

High performance for various applications

HIGH PERFORMANCE
INDUSTRIAL FANS

Rotoline offers a wide range of diverse fans for Cooling, Recirculation and Exhaust. These fans are used in the rotational molding process and can also be used for other industrial applications. They are manufactured with a high level of quality, meet all current safety standards, and are available in different versions and sizes.

CHECK THE MODELS OF
ROTOLINE FANS

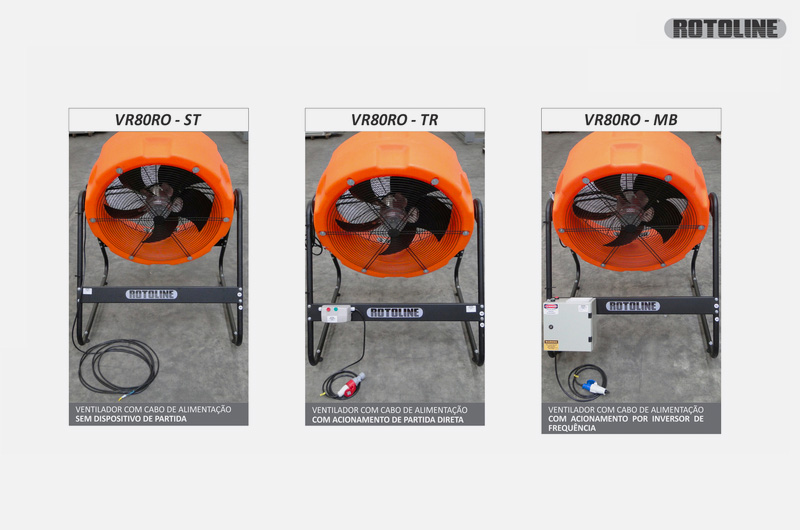

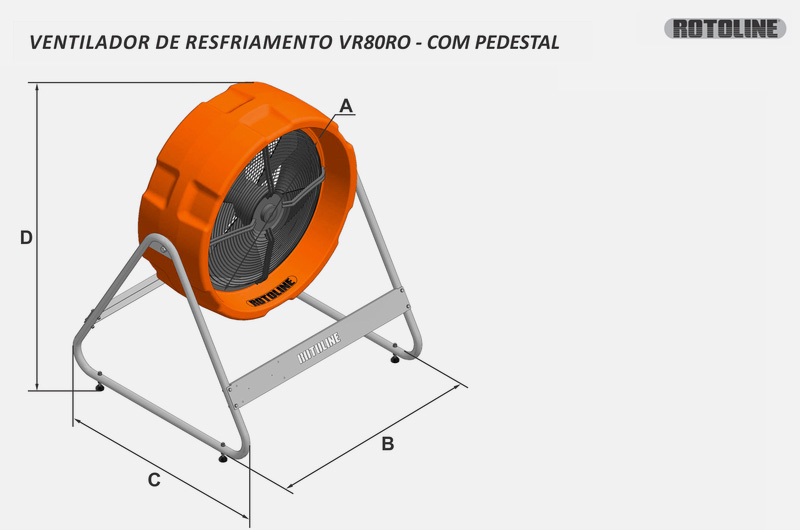

	VR80RO	VR80RO – ST	VR80RO – TR	VR80RO – MB
DATA VALID FOR MODELS MANUFACTURED FROM 2021. FOR INFORMATION ON EARLIER MODELS, CONTACT OUR TECHNICAL SUPPORT.

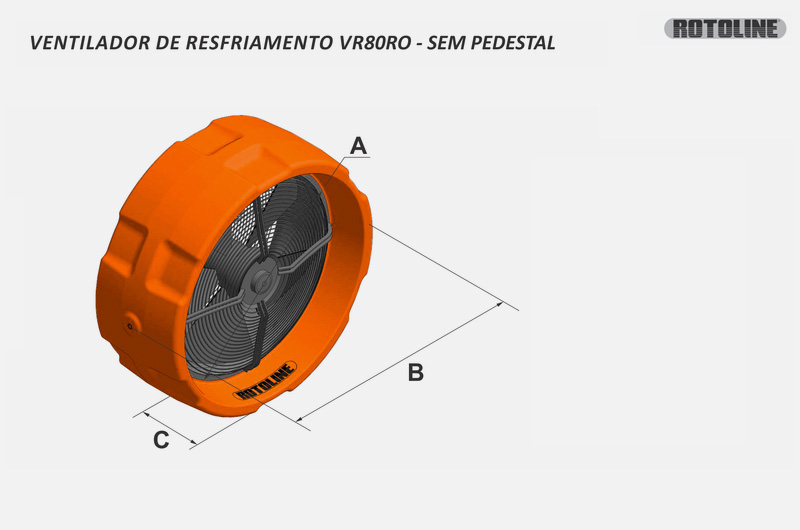

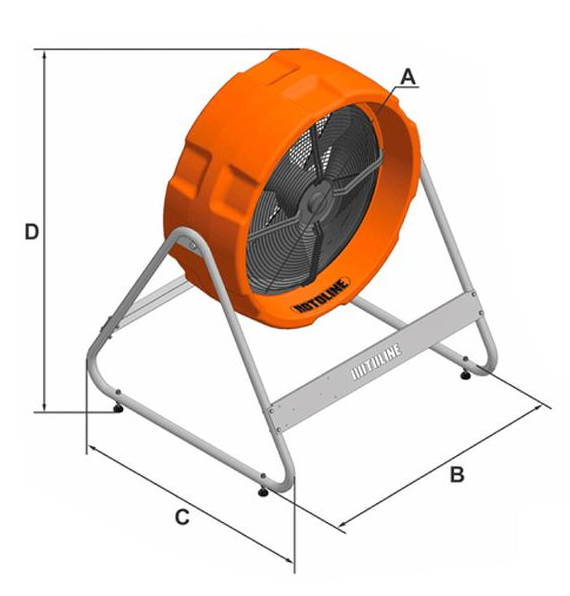

A	800mm 31,50In	800mm 31,50In	800mm 31,50In	800mm 31,50In
B	420mm 16,54In	1155mm 45,47In	1155mm 45,47In	1155mm 45,47In
C	1070mm 42,13In	1140mm 44,88In	1140mm 44,88In	1140mm 44,88In
D	–	1505mm 59,25In	1505mm 59,25In	1505mm 59,25In
HP	2,6	2,6	2,6	2,6
CFM	12264	12264	12264	12264
Weight	70kg 155lb	70kg 155lb	70kg 155lb	70kg 155lb
Noise level	78db	78db	78db	78db
Drive Type	No starting device	No starting device	Direct start drive	Frequency inverter drive
Motor	Three-phase	Three-phase	Three-phase	Single-phase/Three-phase
Pedestal	No	Yes	Yes	Yes

OVERVIEW

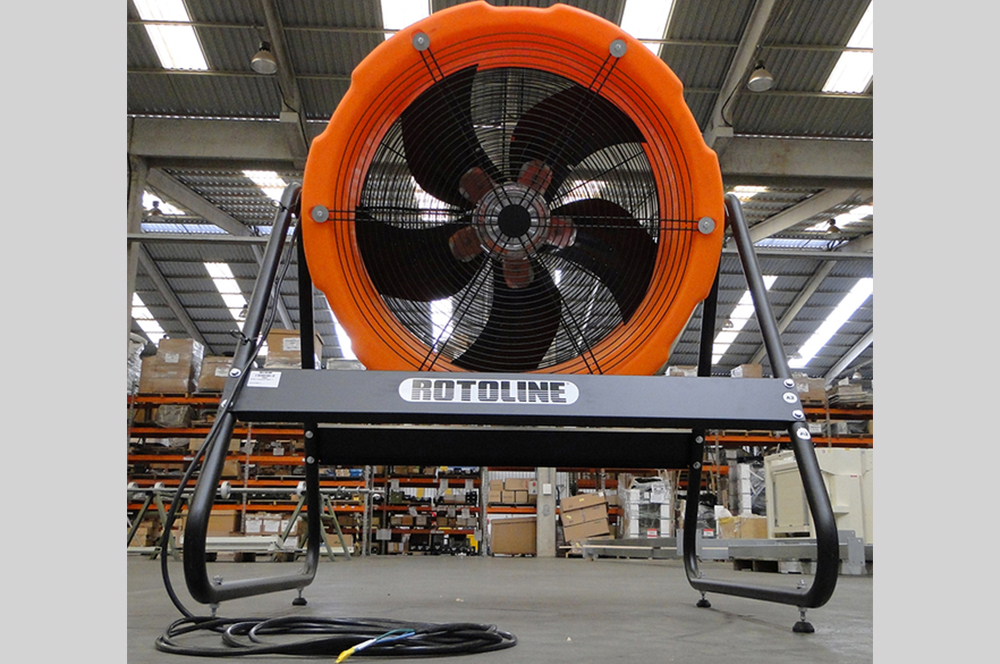

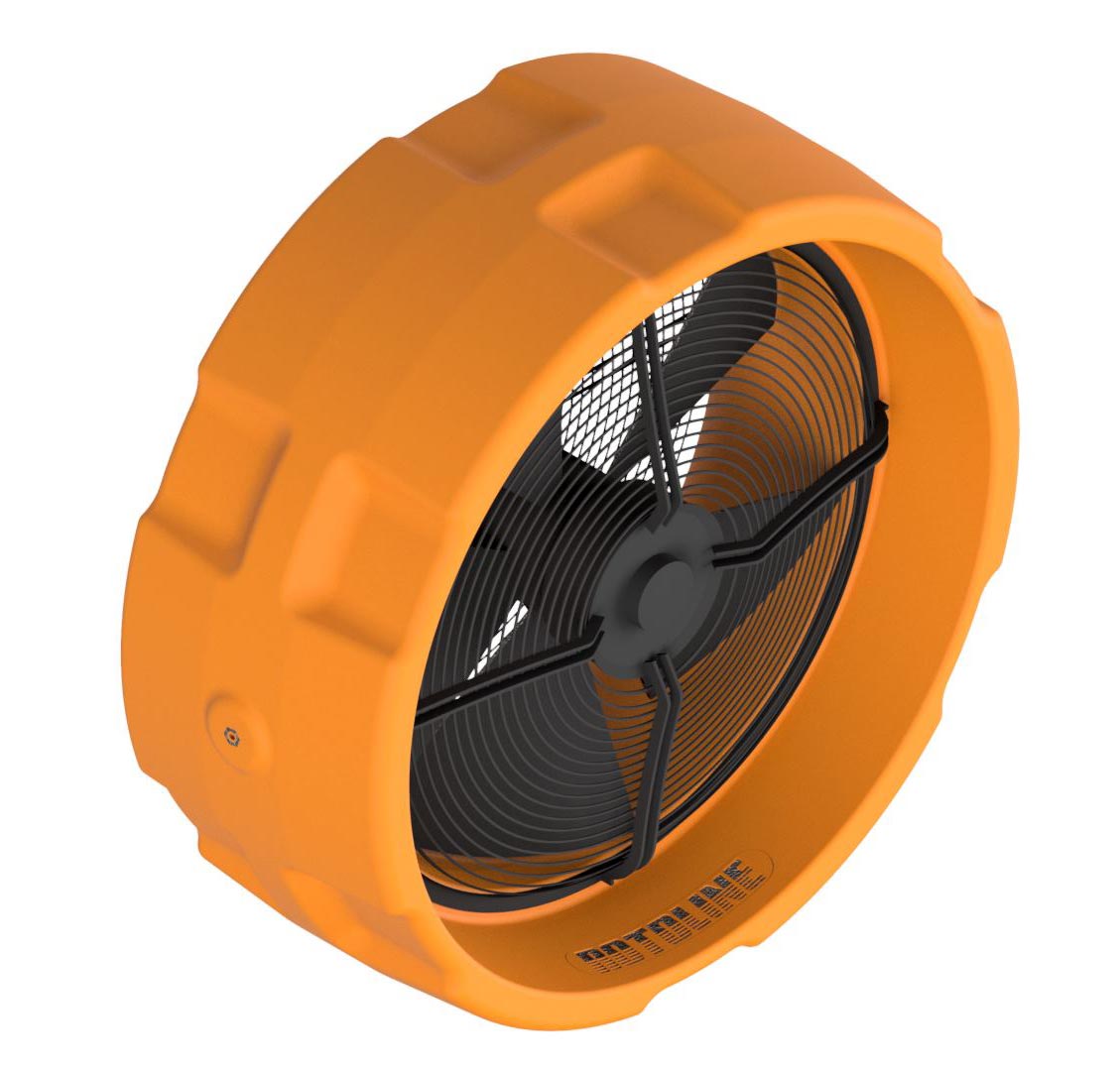

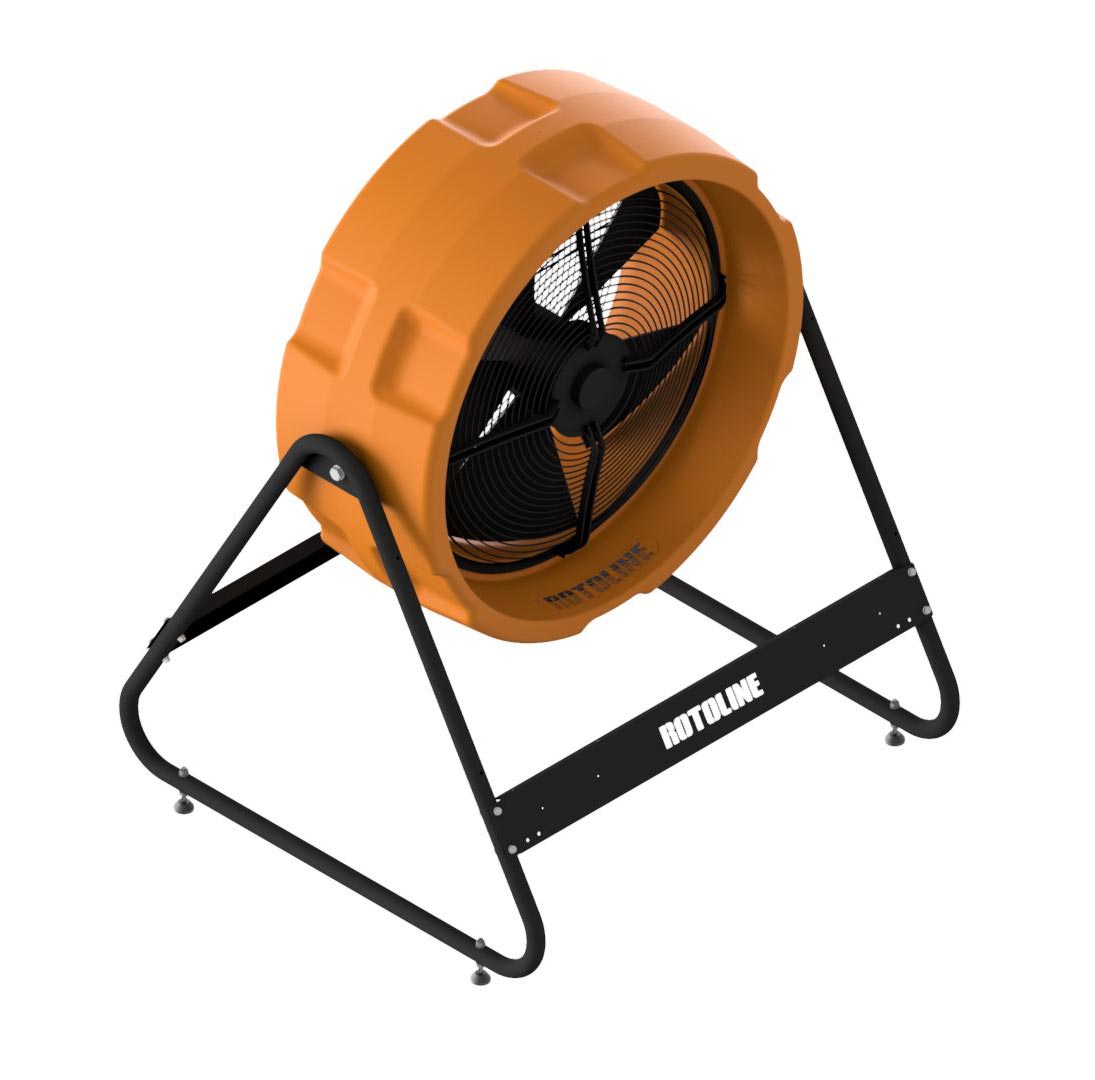

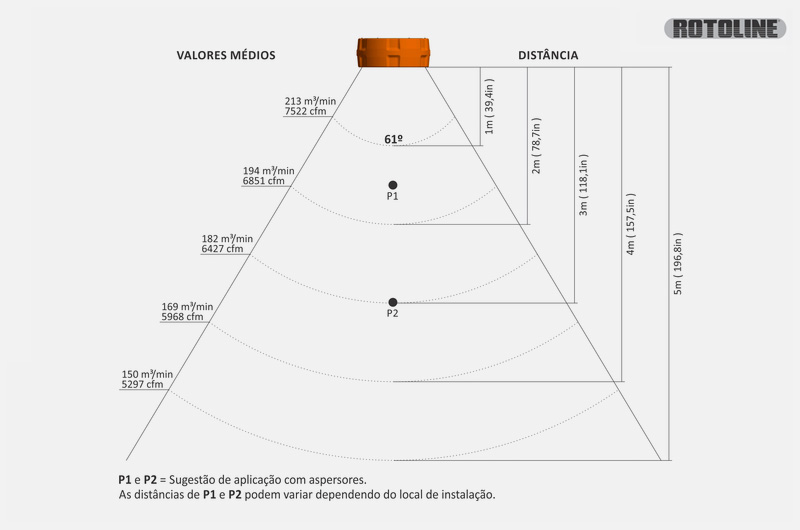

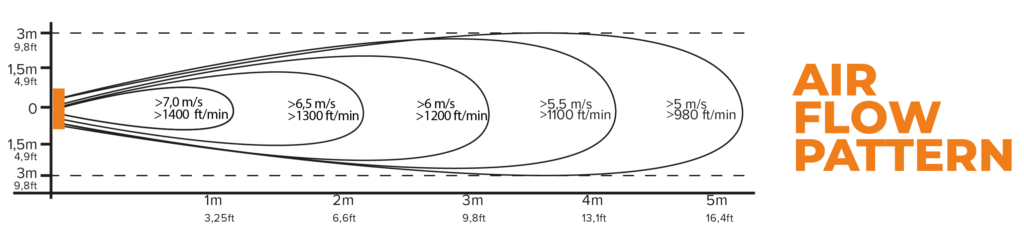

From it's project, the rotomolded cooling fans were designed to provide excellent performance, ensuring a constant and far-reaching airflow. The innovative polyethylene structure design, brings a product that is both, robust and lightweight, being easy to move around and install.

Lightweight and compact, it can be installed in places with restricted space available. It can be installed on walls or columns. If placed on the floor, it´s possible to point the airflow upward and downward. The pedestal is manufactured in steel and have a corrosion resistant paint which makes it very resistant and durable.

Lightweight and high durability.
Plastic rotomolded structure.
Corrosion resistant.
Lower weight and volume, reducing freight costs.
Easy to install and easy to move around.
Propellers with 5 blades assembled directly to the motor.
High performance and economy.
Higher airflow rate with the same energy consumption compared to others of the same power.
Cable with standard plug connection.
Two versions models: Three phases with direct start and single phase with variable frequency driver.
Three types of operation: Without starting device (wall plug). Direct starting drive (wall plug + button). Drive by variable frequency driver.
Allows connection to automatic systems, triggered by other equipment functions.

Fan Model	Machine Model	A	B	C	Motor power 50/60Hz	Motor 50Hz	Motor 60Hz	Weight
DATA VALID FOR MODELS MANUFACTURED FROM 2021. FOR INFORMATION ON EARLIER MODELS, CONTACT OUR TECHNICAL SUPPORT.
VC350	DC1.50	700mm 27,6In	700mm 27,6In	850mm 33,5In	3,0 HP	~1500 RPM	~1800 RPM	135Kg 298lb
VC500					3,0 HP
	DC2.50	905mm 35,6In	950mm 37,4In	970mm 38,2In	7,5 HP			135Kg 298lb
	DC3.00
	CR2.00
	CR2.60
	TNC30
VC800
	DC3.50	1200mm 47,2In	1200mm 47,2In	1330mm 52,4In	~15-20 HP			469Kg 1034lb
	DC4.00
	CR3.10
	CR3.60
VC1000
	DC4.50	1410mm 55,5In	1400mm 55,1In	1670mm 65,7In	~20/25/30/40 HP			775Kg 1709lb
	DC5.00
	CR4.10
	CR4.60
	CR5.20
	CR5.20ES

OVERVIEW

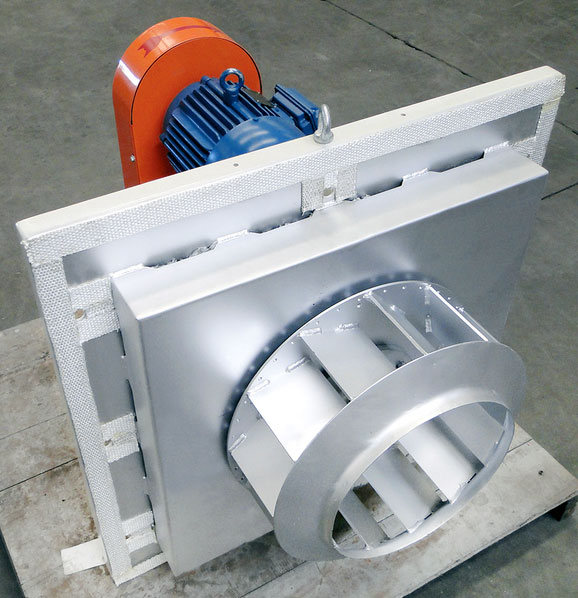

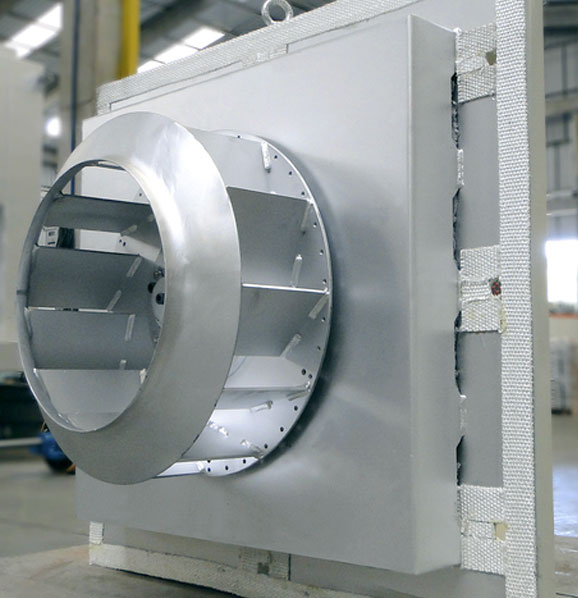

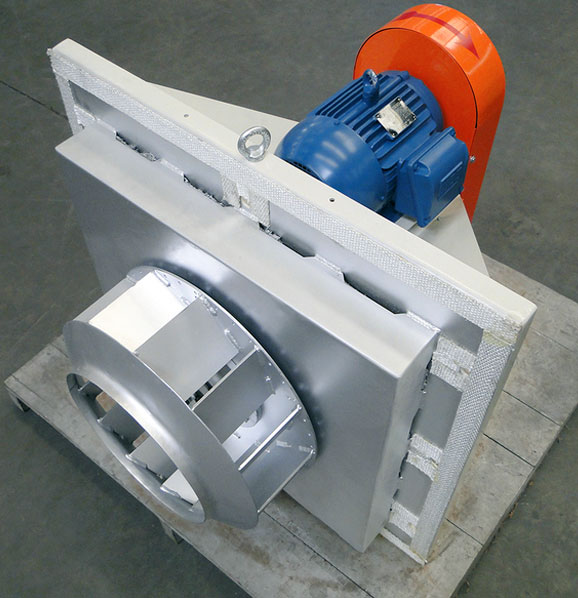

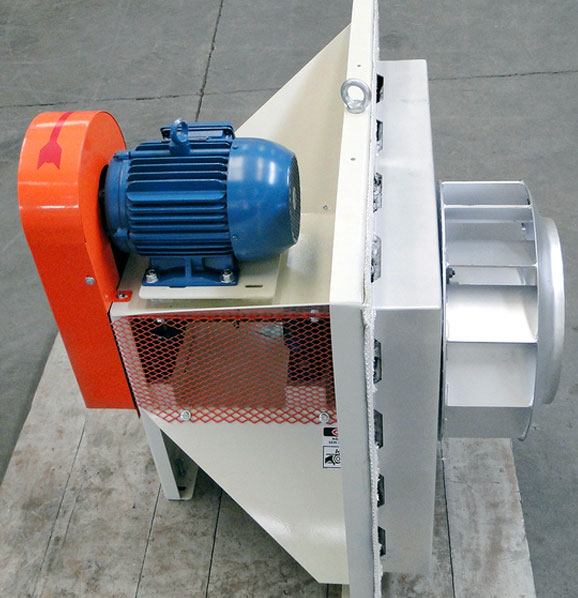

The Recirculation Fans are radial centrifugal type with angled rotor blades of high performance, driven by pulleys and belts "V” type, as, heat sink system.

The structure is manufactured with steel plates and corrosion resistant high-temperature paint. It has protections belts and shafts with safety distance to prevent access to dangerous zones, which meet different Safety Standards.

High performance.
Excellent ratio of air flow X noise.
Easy installation and maintenance.
High efficiency heat sink ensuring component life.
As an option, it can be installed with Variable Frequency Drive (VFD) that facilitates airflow control and optimization of energy efficiency, or soft-starter for three-phase electric motor of alternating current, with manual override.
Three-phase motor.
It can also be used for air exchange for other industrial purposes (paint booth, changing ambient temperature etc.)

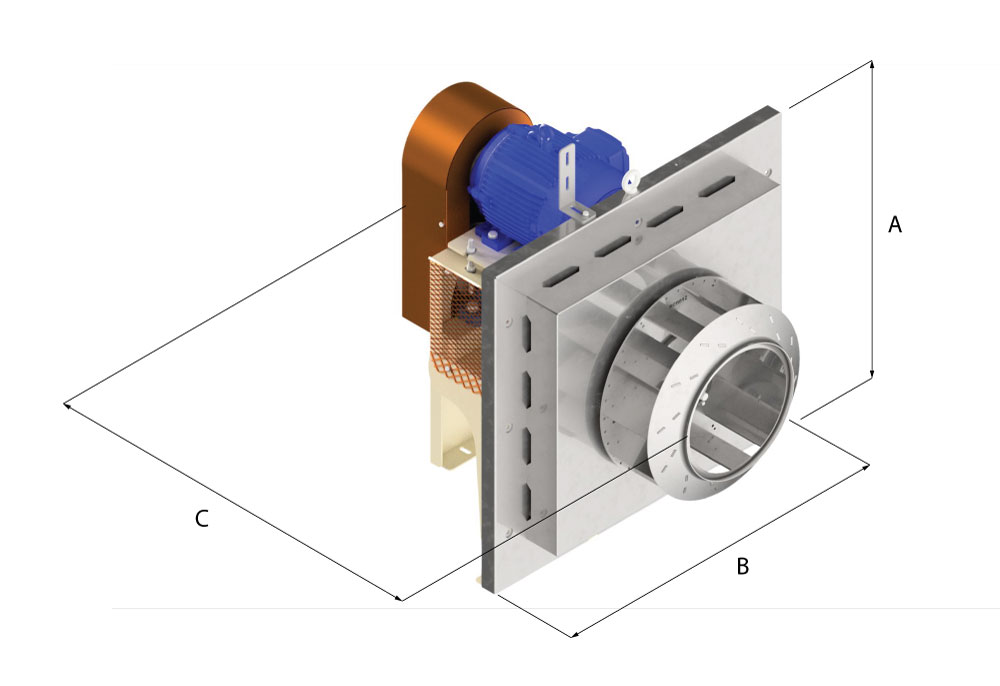

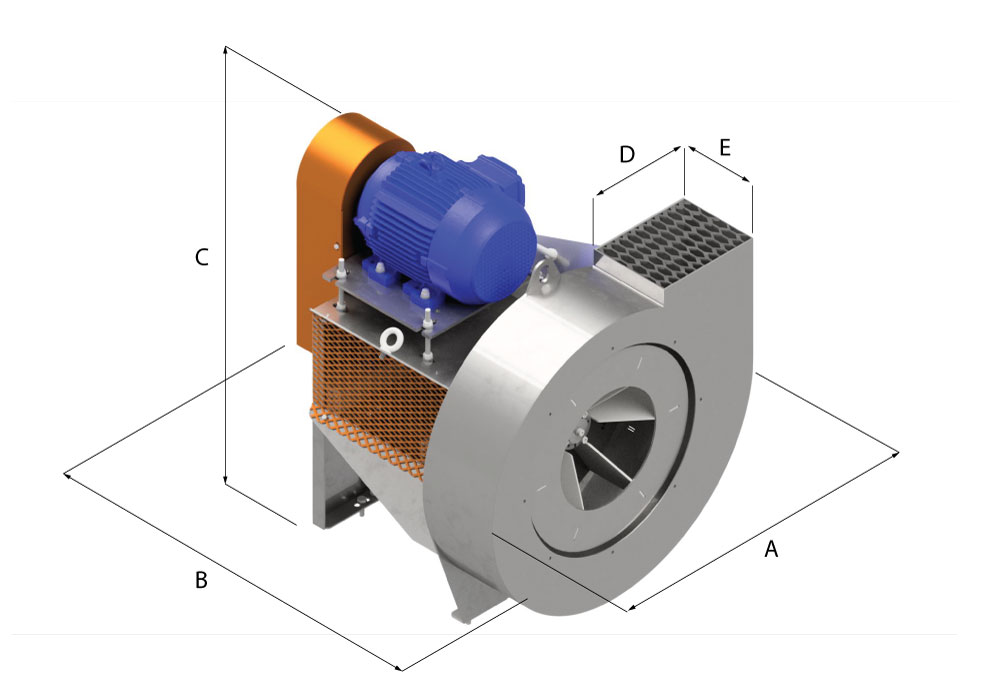

Fan Model	Machine Model	A	B	C	D	E	Average air displacement	Motor power 50/60Hz	Motor 50Hz	Motor 60Hz	Weight
DATA VALID FOR MODELS MANUFACTURED FROM 2021. FOR INFORMATION ON EARLIER MODELS, CONTACT OUR TECHNICAL SUPPORT.
VE300	DC1.50	490mm 19,3In	685mm 27,0In	620mm 24,4In	162mm-Interno 6,4In	125mm-Interno 4,9In	55m³/min	2,0 HP	~1500 RPM	~1800 RPM	100Kg 221lb
	DC2.50
	DC3.00
	CR2.00
	CR2.60
VE500	TNC30	815mm 32,1In	865mm 34,1In	920mm 36,2In	274mm-Interno 10,8In	210mm-Interno 8,3In	130m³/min	4,0 HP			200Kg 441lb
	DC3.50
	DC4.00
	CR3.10
	CR3.60
VE500-A	DC4.50	815mm 32,1In	865mm 34,1In	920mm 36,2In	424mm-Interno 16,7In	210mm-Interno 8,3In	220m³/min	5,0 HP			200Kg 221lb
	DC5.00
	CR4.10
	CR4.60
	CR5.20
	CR5.20ES

OVERVIEW

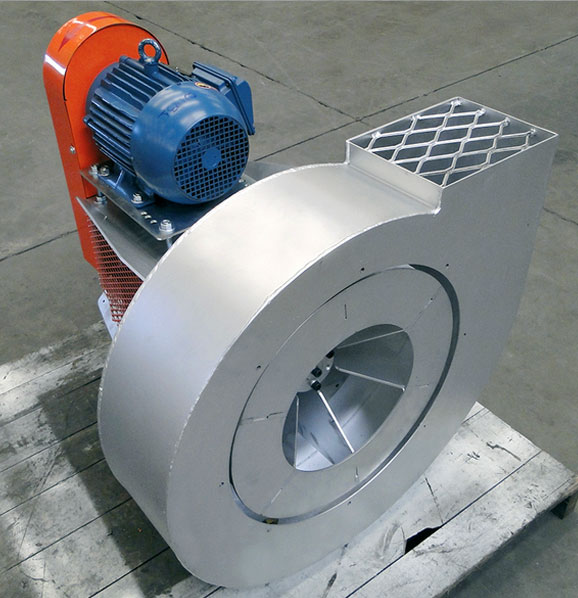

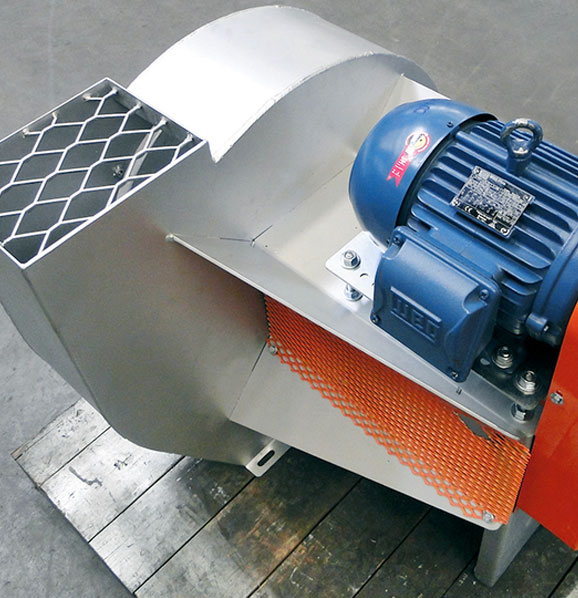

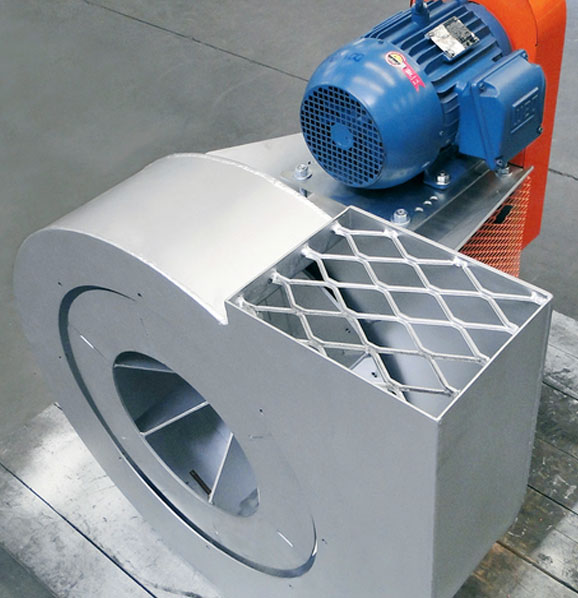

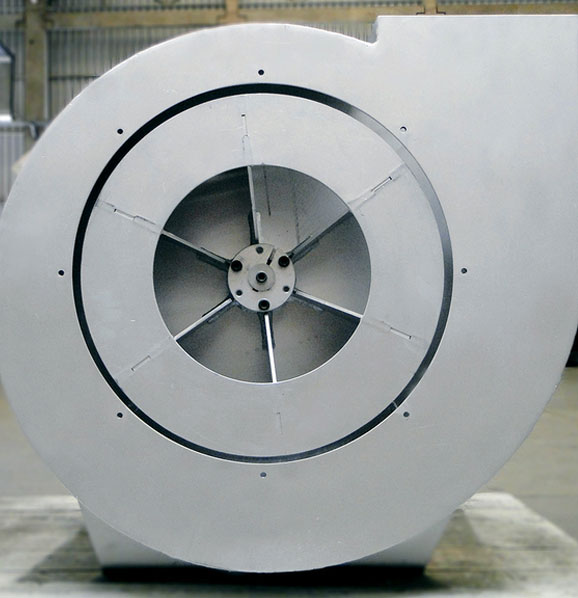

The Oven Exhaust Fans are radial centrifugal type with straight blades rotor, it´s driven by pulleys and “V” belts type, as, heat dissipation system.

Easy installation and maintenance.
High performance.
High efficiency heat sink ensuring component life.
Excellent ratio of air flow X noise.
As an option, it can be installed with Variable Frequency Drive (VFD) that facilitates airflow control and optimization of energy efficiency, or soft-starter for three-phase electric motor of alternating current, with manual override.
Three-phase motor.

Fan Model	Machine Model	A	B	Average air displacement	Motor power 50/60Hz	Motor 50Hz	Motor 60Hz	Weight
DATA VALID FOR MODELS MANUFACTURED FROM 2021. FOR INFORMATION ON EARLIER MODELS, CONTACT OUR TECHNICAL SUPPORT.

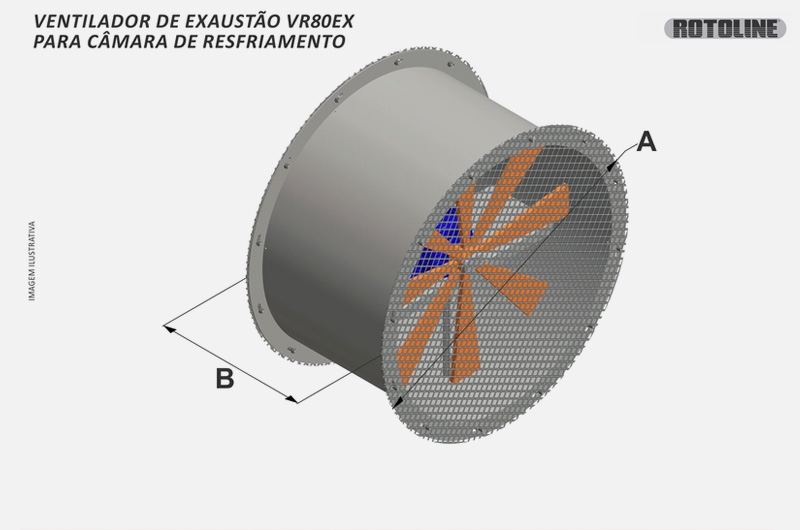

VR80EX Old Model	CR 2.00	800mm – Interno 31In	560mm 22In	435m³/min 15360 CFM	2,0 HP	~1000 RPM	~1200 RPM	80Kg 176lb
VR80EX Old Model	CR 2.60	800mm – Interno 31In	560mm 22In	435m³/min 15360 CFM	2,0 HP	~1000 RPM	~1200 RPM	80Kg 176lb
VR105EX Old Model	CR3.10	1050mm – Interno 41In	810mm 32In	770m³/min 27189 CFM	7,5 HP	~1500 RPM	~1800 RPM	150Kg 331lb
	CR3.60
	CR4.10
	CR4.60
	CR5.20
	CR5.20ES
Axial Hyblade Fan (Current Model)	CR2.00	800mm 31In	300mm 12In	182m³/min 6426 CFM	3,0 HP	~900 RPM	~1030 RPM	56Kg 123lb
	CR 2.60
	CR3.10
	CR3.60
	CR4.10
	CR4.60
	CR5.20
	CR5.20ES

OVERVIEW

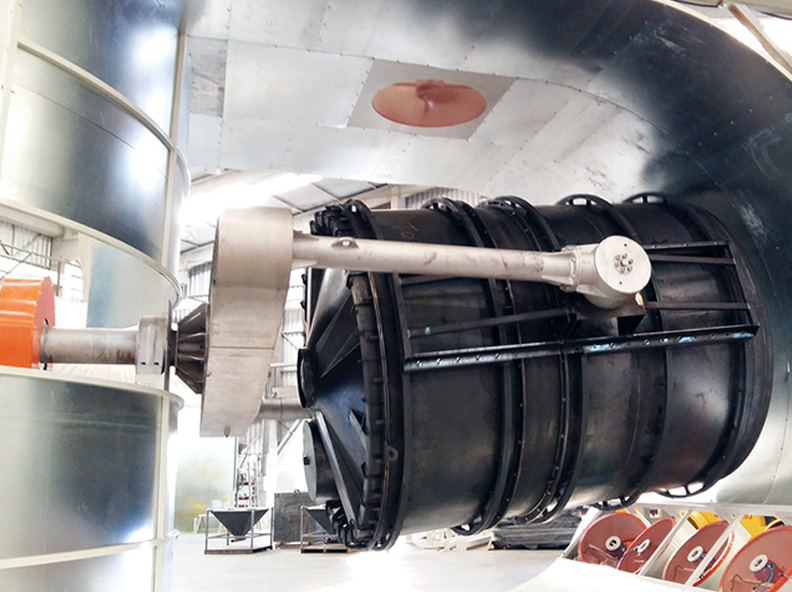

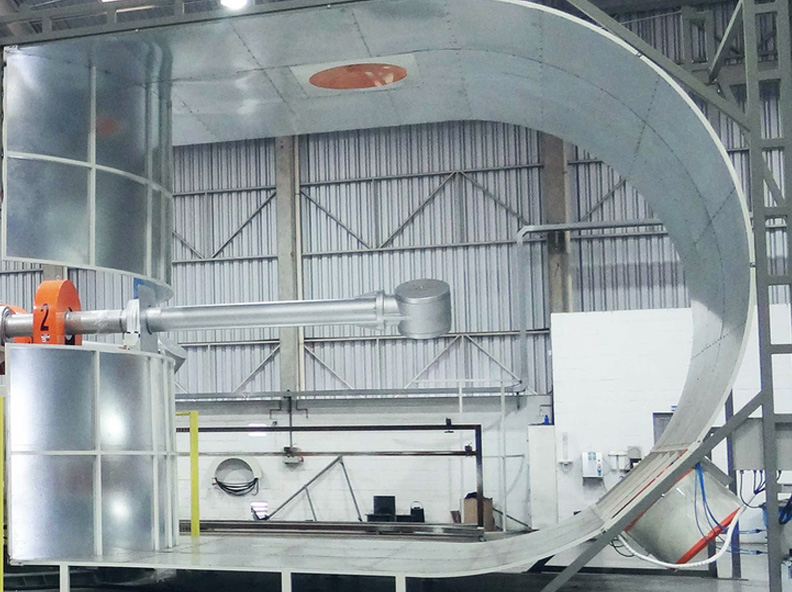

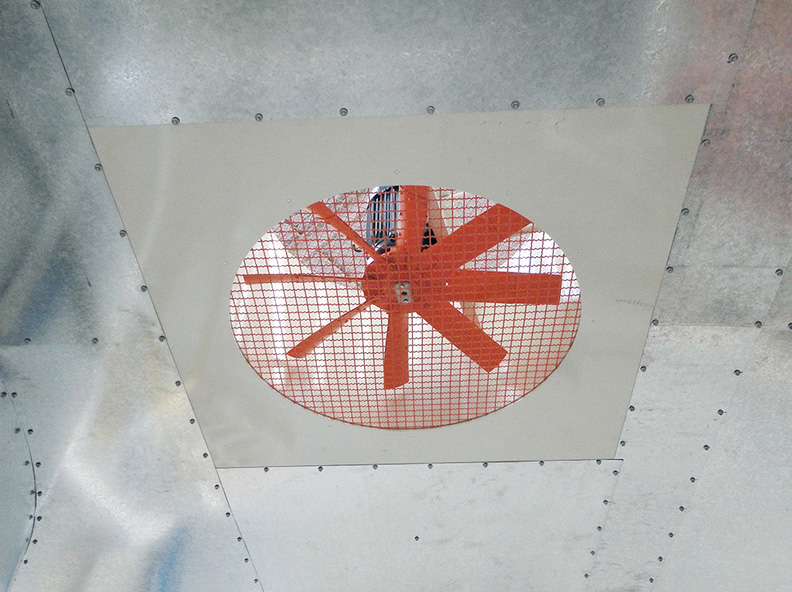

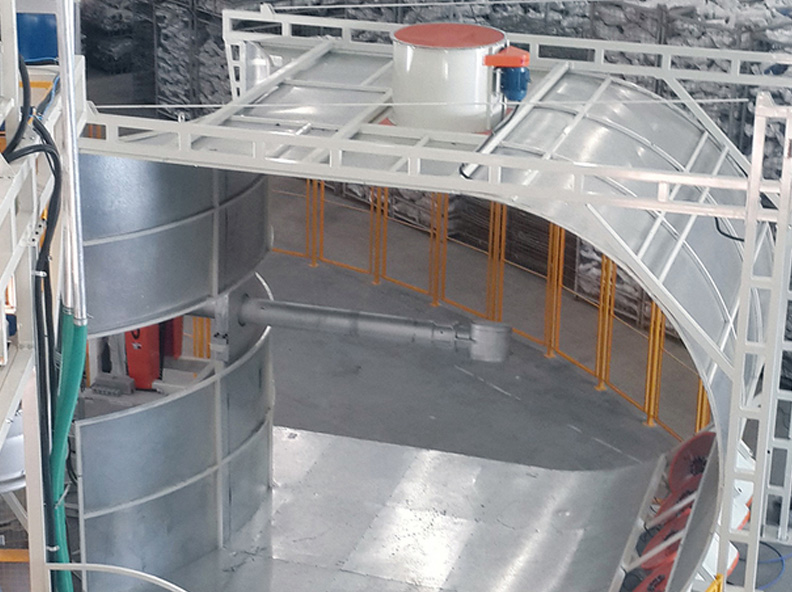

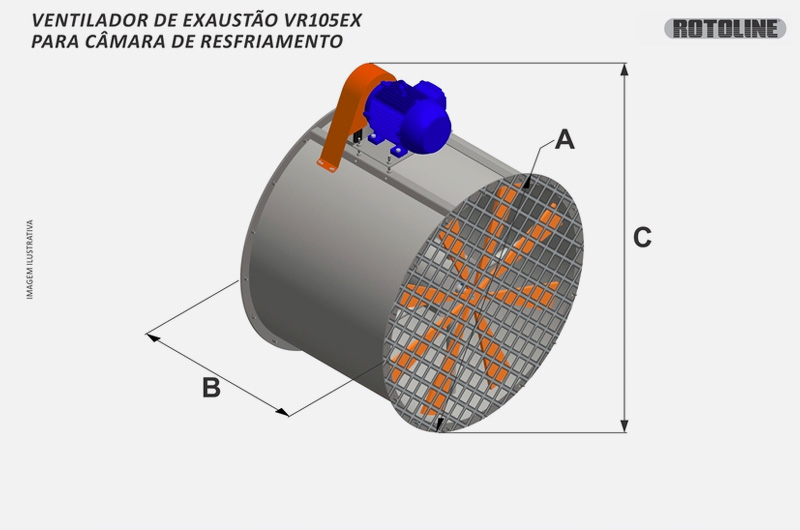

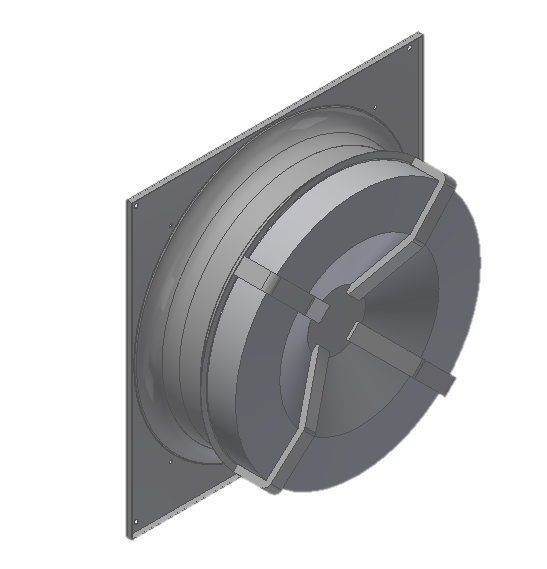

The Cooling Chamber Exhaust Fans of Carrossel Machines Model are manufactured with axial tube, with high performance propeller, driven by pulleys and “V” belts type.

The structure is manufactured with steel plates and corrosion resistant paint. It has protections belts and guards with safety distance to prevent access to dangerous zones, which meet different Safety Standards.

Easy installation and maintenance.
Excellent ratio of air flow X noise.
High performance.
As an option, it can be installed with Variable Frequency Drive (VFD) that facilitates airflow control and optimization of energy efficiency, or soft-starter for three-phase electric motor of alternating current, with manual override.
Three-phase motor.
